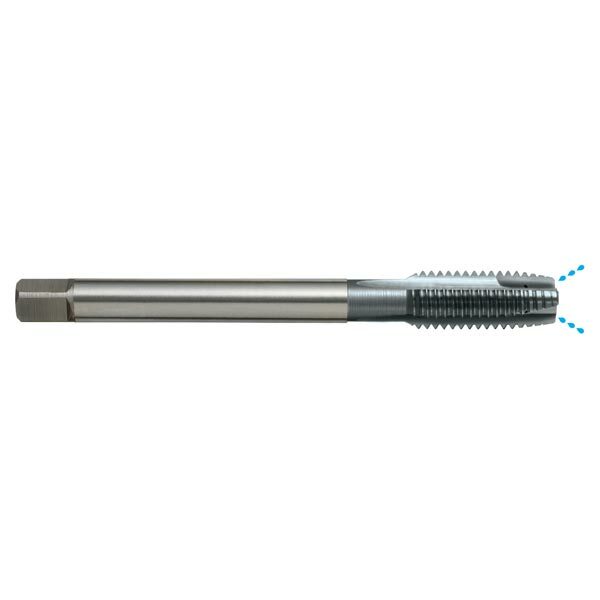

Sutton T149 Metric Spiral Point Tap - Cobalt Steel TiCN - Sutton Tools

Description

Features

Suitable for harder short chipping materials up to 45 HRc
Through holes
Depths up to 3 x d1

Specifications

Designation: H (for hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: ru
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
Cast Iron, Malleable – Ferritic/Pearlitic
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
Hardened steel: Hardened & Tempered
Cast Iron - Chilled: Cast

Specifications

AIMS SKU A0013077

Brand Sutton Tools

Model Number T1491200

Barcode Number 9311963420189

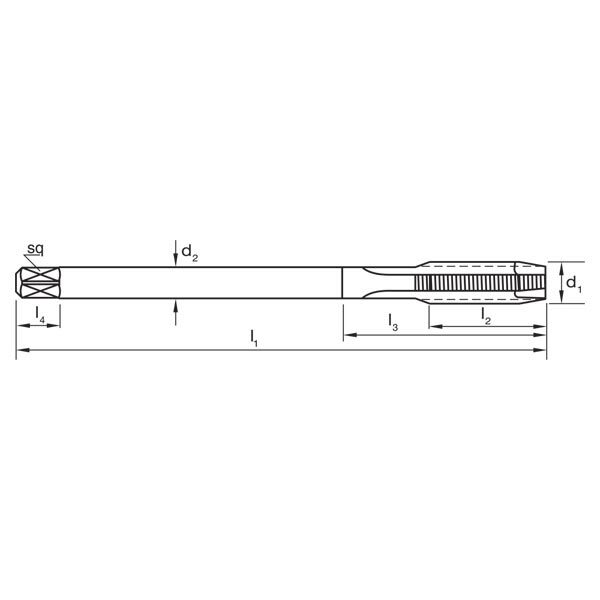

Shank (mm) 9

L1 (mm) 110

Pitch (mm) 1.75

L2 (mm) 28

z 3

Diameter (metric) M12

Drill Size (mm) 10.2

L4 (mm) 10

Square Size (mm) 7

Group Code T149
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form B / 4.5 x P
Application H (for hard materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 6HX
