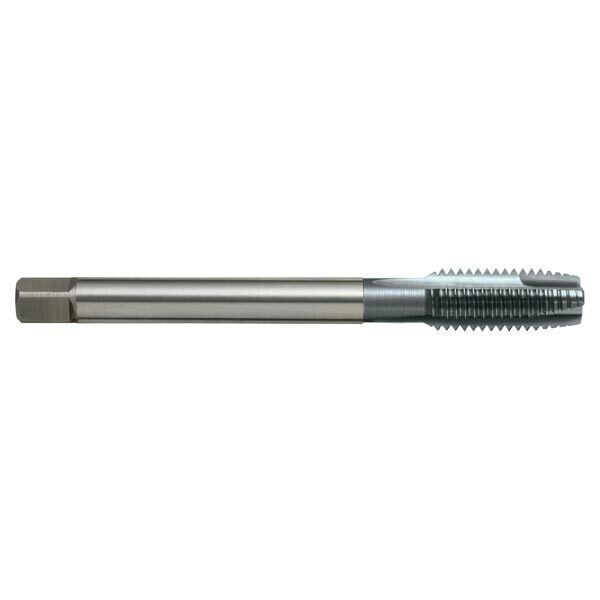

Sutton T153 Metric Spiral Flute Tap - Cobalt Steel TiCN - Sutton Tools

Description

Features

Use in stainless steels and high strength steels up to 1000N/mm2
For Titanium based alloys
For duplex and super duplex stainless steels
For Nickel based alloys >850N/mm2 <1150N/mm2
Tight tolerances and optimised microfinish
For optimal process reliability and excellent thread quality
Through holes up to approx. 1.5 x d1

Specifications

Designation: Ti (for titaniums)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: L12
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Beta alloys: Annealed

Specifications

AIMS SKU A0013092

Brand Sutton Tools

Model Number T1532000

Barcode Number 9311963398655

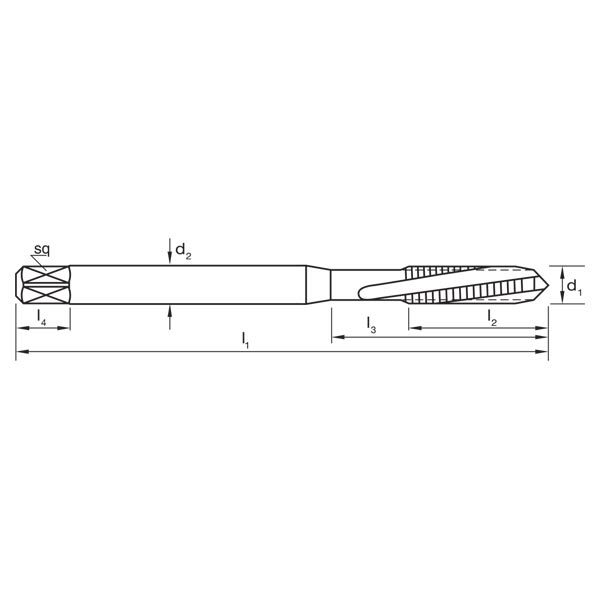

Shank (mm) 16

L1 (mm) 140

Pitch (mm) 2.5

L2 (mm) 34

z 4

Diameter (metric) M20,M20

Drill Size (mm) 17.5

L4 (mm) 15

Square Size (mm) 12

Group Code T153
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form B / 4.5 x P
Helix Angle L12
Application Ti (for titaniums)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Spiral Flute
Nut Tolerance 6HX
