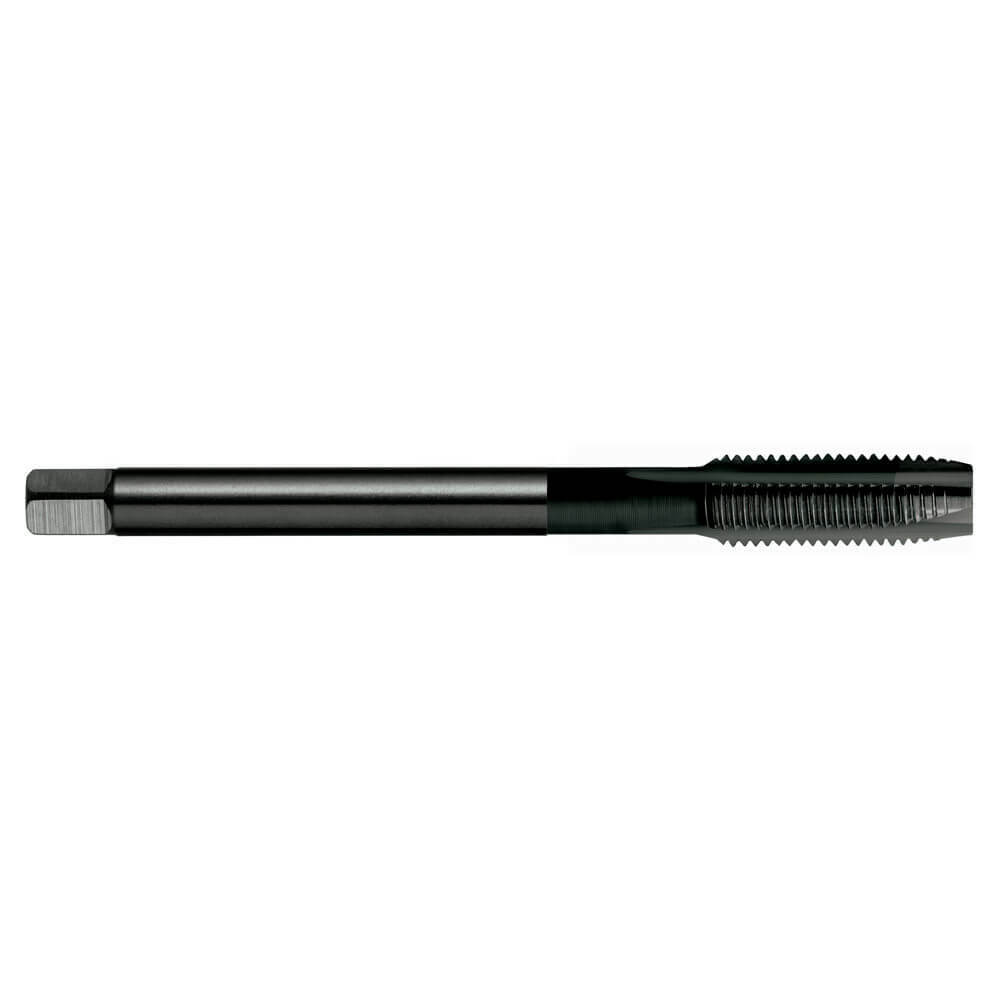

Sutton T158 Metric Fine Spiral Point Tap - Premium HSS Blue - Sutton Tools

Description

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications

AIMS SKU A0013190

Brand Sutton Tools

Model Number T1580604

Barcode Number 9311963516523

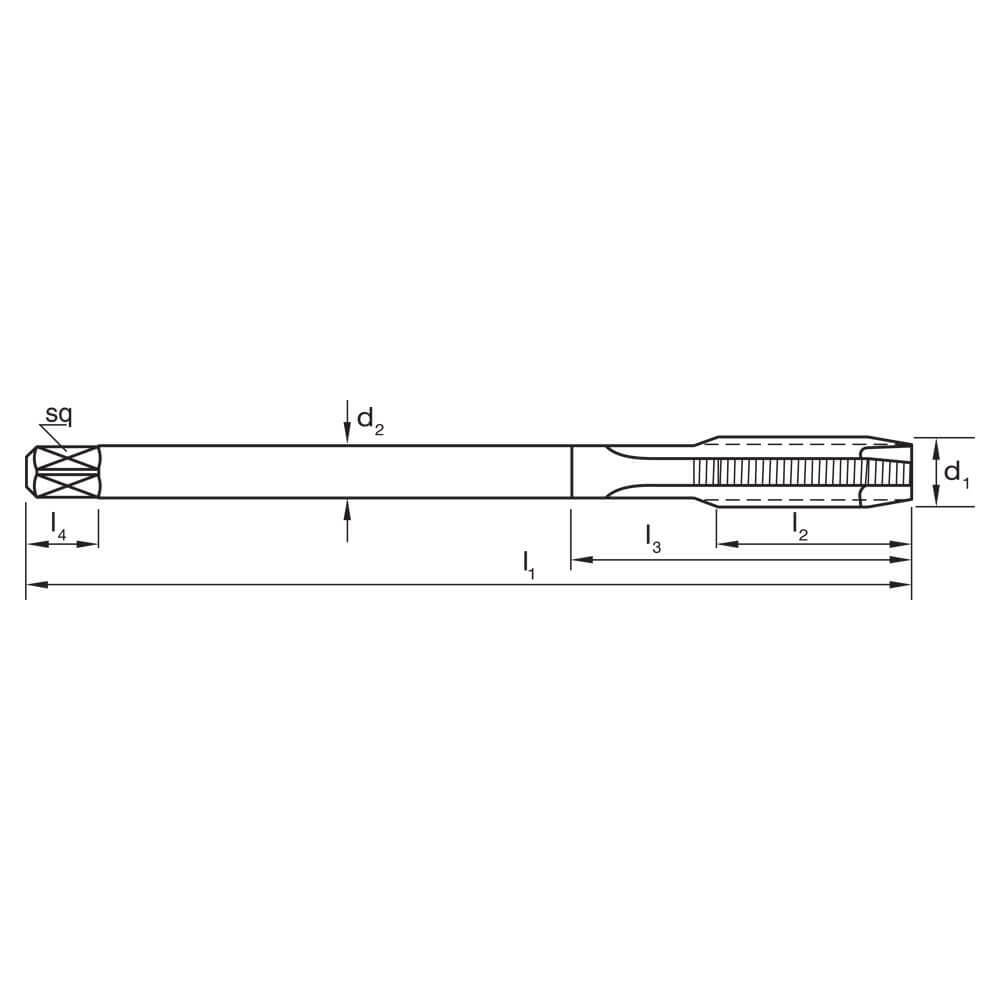

Shank (mm) 4.5

L1 (mm) 80

Pitch (mm) 0.75

L2 (mm) 14

z 3

Diameter (metric) MF6

Drill Size (mm) 5.3

L4 (mm) 6

Square Size (mm) 3.4

Group Code T158
System of Measurement DIN374
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
