Specifications

AIMS SKU A0013208
Brand Sutton Tools
Model Number T1600604
Barcode Number 9311963428086

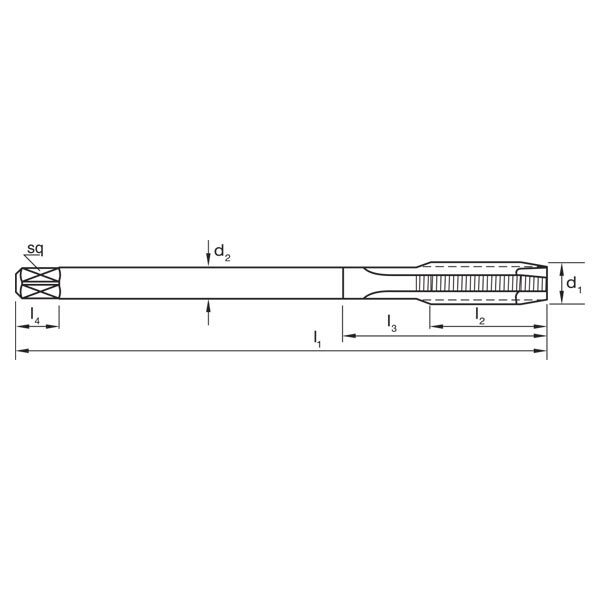

Shank (mm) 4.5
L1 (mm) 80
Pitch (mm) 0.75
L2 (mm) 14
z 3
Diameter (metric) MF6
Drill Size (mm) 5.3
L4 (mm) 6
Square Size (mm) 3.4
• Group Code T160
• System of Measurement DIN374
• Thread Form ISO Metric Fine (MF)
• Material Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish Titanium Carbonitride (TiCN)
• Lead Form B / 4.5 x P
• Application VA (for stainless and tough steels)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Point (Gun)
• Nut Tolerance 6HX
