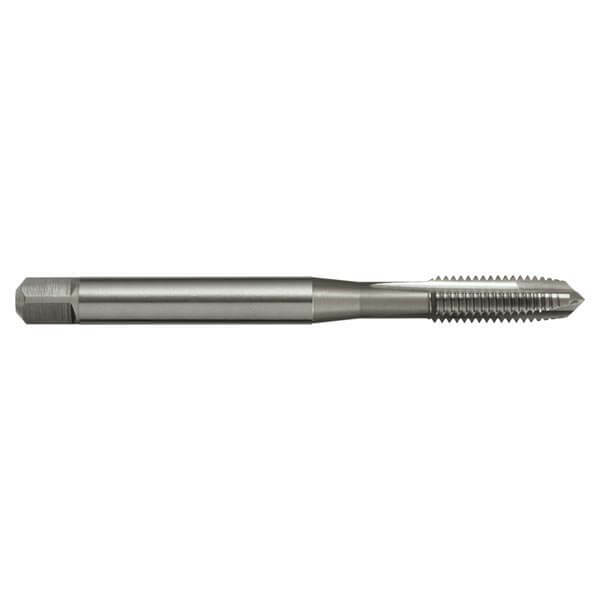

Sutton T164 UNC Spiral Point Tap - Premium HSS - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0013261

Brand Sutton Tools

Model Number T1640483

Barcode Number 9311963521220

Diameter (inch) #10

TPI 24

Shank (mm) 6

L1 (mm) 70

L2 (mm) 16

L3 (mm) 20

z 3

Drill Size (mm) 3.8

L4 (mm) 8

Square Size (mm) 4.9

Group Code T164
System of Measurement DIN2184-1
Thread Form UNC
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 2B
