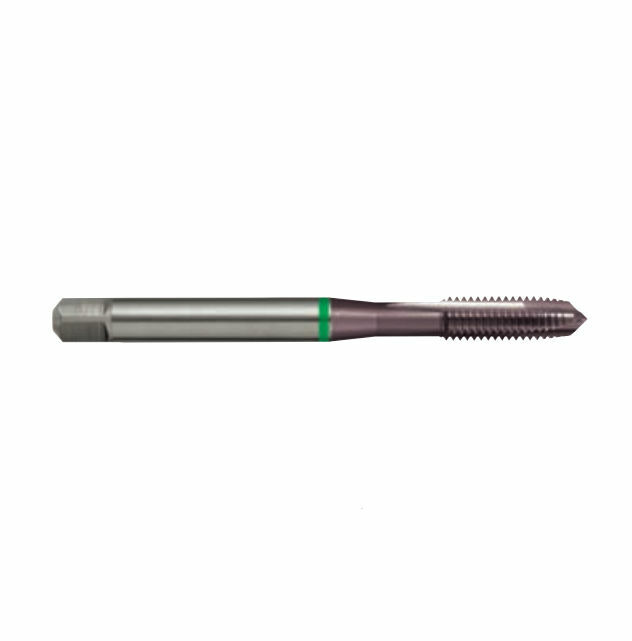

Sutton T169 UNC Spiral Point Tap - Vanadium HSS TiAIN - Sutton Tools

Description

Features

Use in harder short chipping materials up to 42 HRc
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Cast Iron, Malleable – Ferritic
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0013316

Brand Sutton Tools

Model Number T1690635

Barcode Number 9311963428963

Diameter (inch) 1/4

Shank (mm) 7

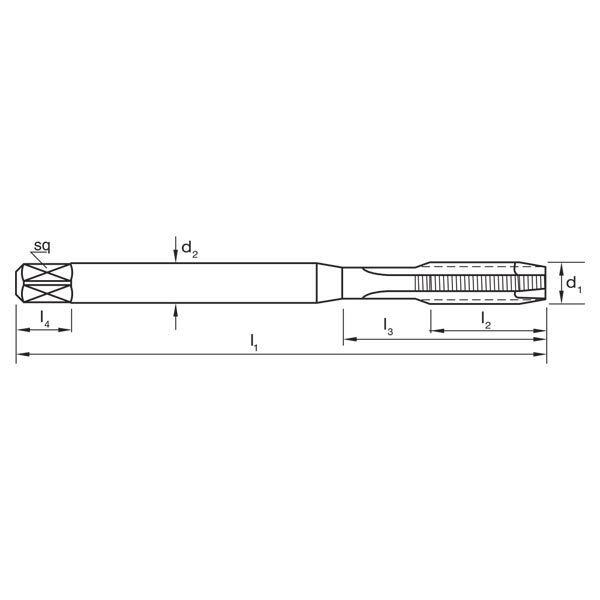

L1 (mm) 80

L2 (mm) 19

L3 (mm) 30

z 3

Drill Size (mm) 5.1

L4 (mm) 8

Square Size (mm) 5.5

Group Code T169
System of Measurement DIN2184-1
Thread Form UNC
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Aluminium Nitride (TiAIN)
Lead Form B / 4.5 x P
Application NH
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 2B
