Specifications

AIMS SKU A0013459
Brand Sutton Tools
Model Number T1830350
Barcode Number 9311963423715

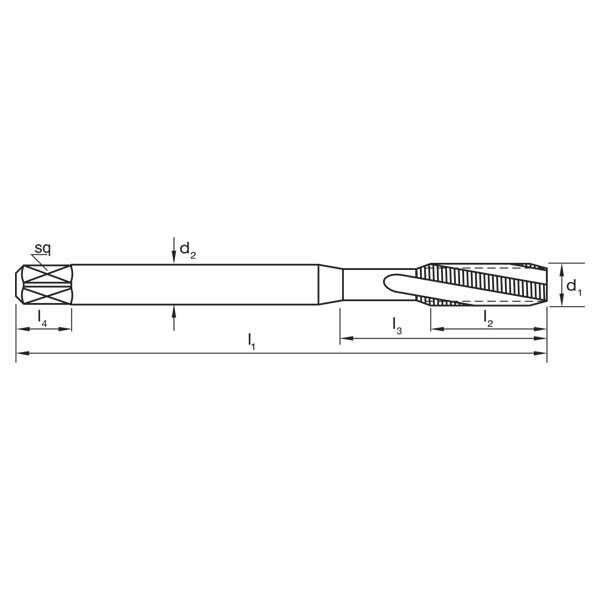

Shank (mm) 4
L1 (mm) 56
L2 (mm) 13
L3 (mm) 20
z 3
Diameter (metric) M3.5
Drill Size (mm) 2.9
L4 (mm) 6
Square Size (mm) 3
• Group Code T183
• System of Measurement DIN371
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Bright
• Lead Form C / 3 x P
• Helix Angle R15
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1.5xD
• Tap Type Spiral Flute
• Nut Tolerance ISO 2 / 6H
