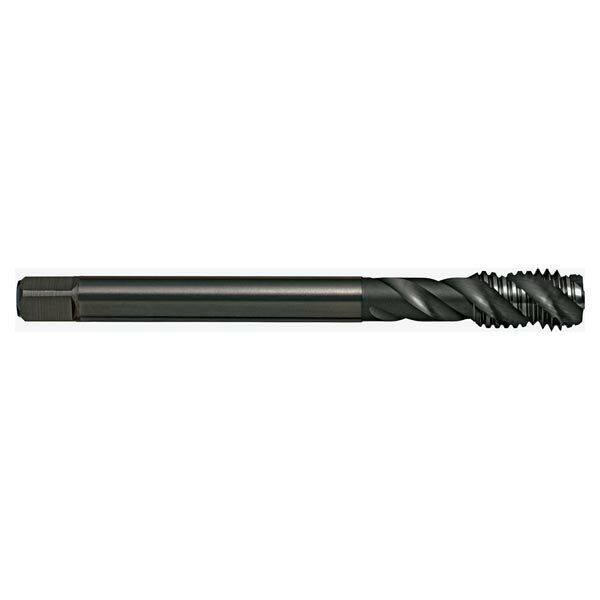

Sutton T199 Metric Spiral Flute Tap - R45 VADH - Premium HSS Blue - Sutton Tools

Description

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications

AIMS SKU A0013581

Brand Sutton Tools

Model Number T1992400

Barcode Number 9311963443782

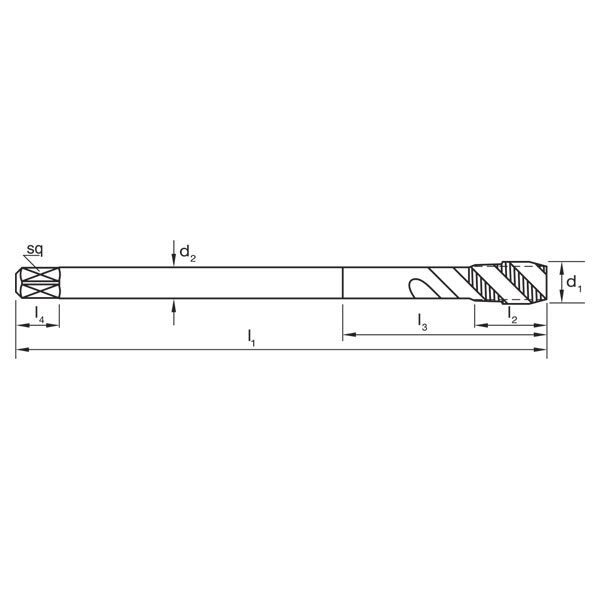

Shank (mm) 18

L1 (mm) 160

Pitch (mm) 3

L2 (mm) 30

z 4

Diameter (metric) M24

Drill Size (mm) 21

L4 (mm) 17

Square Size (mm) 14.5

Group Code T199
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form C / 3 x P
Helix Angle R45
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
