Specifications

AIMS SKU A0013624
Brand Sutton Tools
Model Number T2050350
Barcode Number 9311963419152

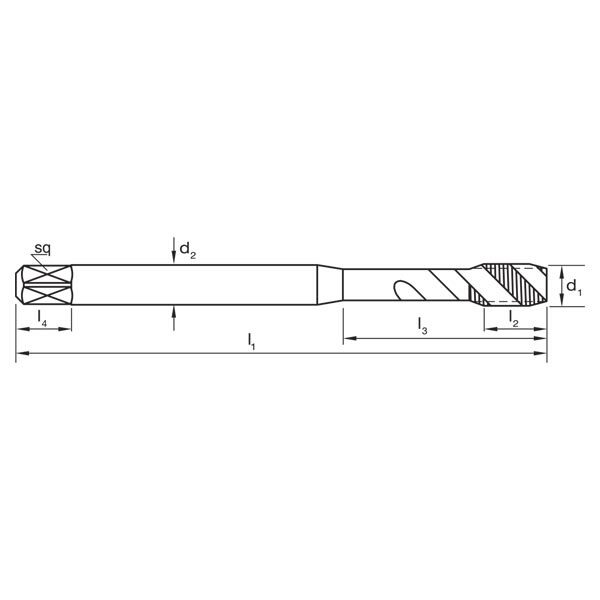

Shank (mm) 4
L1 (mm) 56
L2 (mm) 6
L3 (mm) 20
z 3
Diameter (metric) M3.5
Drill Size (mm) 2.9
L4 (mm) 6
Square Size (mm) 3
• Group Code T205
• System of Measurement DIN371
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Helix Angle R50
• Application VA (for stainless and tough steels)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Flute
• Nut Tolerance 6HX
