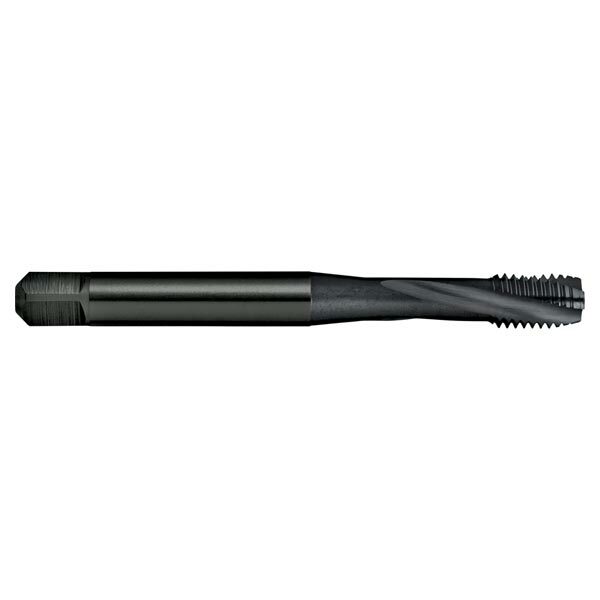

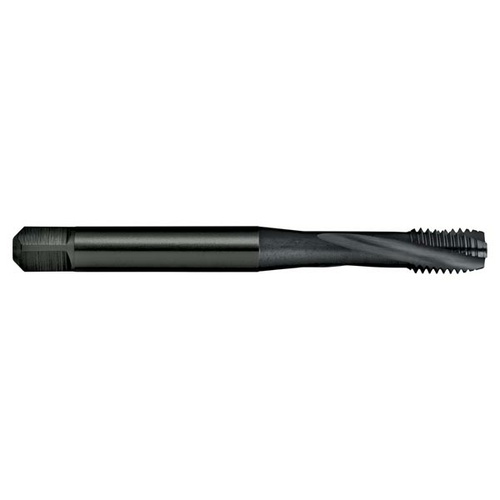

Sutton T209 Metric Spiral Flute Tap - R15 H - Cobalt Steel Blue - Sutton Tools

Description

Features

Suitable for harder short chipping materials up to 45 HRc
Blind holes
Depths up to 1.5 x d1

Specifications

Designation: H (for hard materials forming short chips)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Steam Oxide (Blue)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered

Specifications

AIMS SKU A0013650

Brand Sutton Tools

Model Number T2090500

Barcode Number 9311963399478

Shank (mm) 6

L1 (mm) 70

L2 (mm) 8

L3 (mm) 25

z 3

Diameter (metric) M5

Drill Size (mm) 4.2

L4 (mm) 8

Square Size (mm) 4.9

Group Code T209
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Steam Oxide (Blue)
Lead Form C / 3 x P
Helix Angle R15
Application H (for hard materials forming short chips)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6HX
