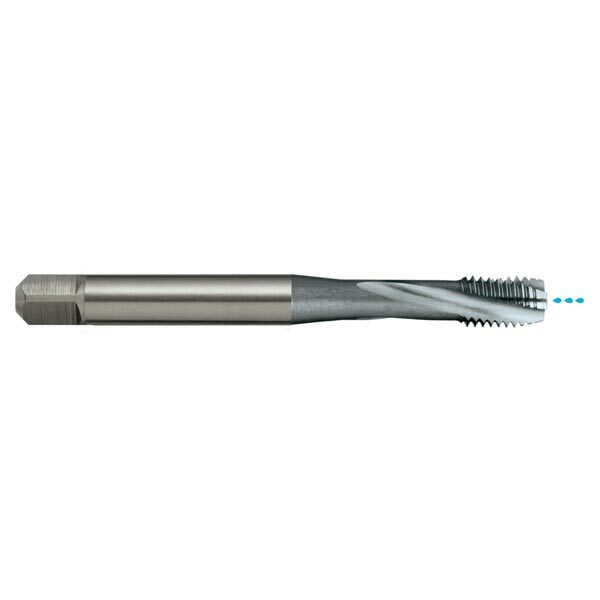

Sutton T213 Metric Spiral Flute Tap - R15 H IK - Cobalt Steel TiCN - Sutton Tools

Description

Features

Suitable for harder short chipping materials up to 45 HRc
Blind holes
Depths up to 1.5 x d1

Specifications

Designation: H (for hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: ru
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
Cast Iron, Malleable – Ferritic/Pearlitic
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
Titanium & Titanium alloys - Beta alloys: Age Hardened
Cast Iron - Chilled: Cast

Specifications

AIMS SKU A0013670

Brand Sutton Tools

Model Number T2130500

Barcode Number 9311963399584

Shank (mm) 6

L1 (mm) 70

L2 (mm) 8

L3 (mm) 25

z 3

Diameter (metric) M5

Drill Size (mm) 4.2

L4 (mm) 8

Square Size (mm) 4.9

Group Code T213
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Helix Angle R15
Application H (for hard materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6HX
