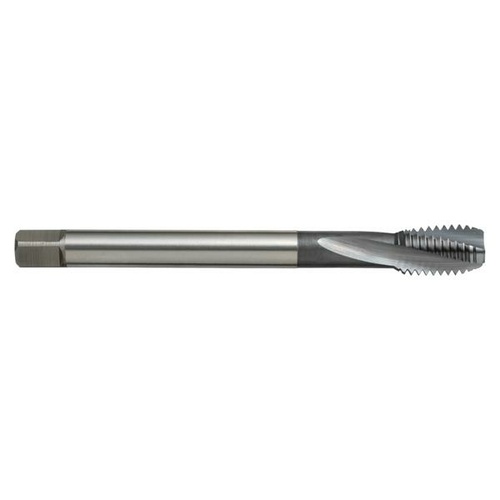

Sutton T216 Metric Spiral Flute Tap - R15 Ti - Cobalt Steel TiCN - Sutton Tools

Description

Features

For Titanium based alloys
For duplex and super duplex stainless steels
For Nickel based alloys >850N/mm2 <1150N/mm2
Tight tolerances and optimised microfinish
For optimal process reliability and excellent thread quality
Blind holes up to approx. 1.5 x d1

Specifications

Designation: Ti (for titaniums)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Titanium & Titanium alloys - Alpha alloys
Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
Titanium & Titanium alloys - Beta alloys: Annealed

Specifications

AIMS SKU A0013686

Brand Sutton Tools

Model Number T2161400

Barcode Number 9311963399744

Shank (mm) 11

L1 (mm) 110

Pitch (mm) 2

L2 (mm) 20

z 3

Diameter (metric) M14

Drill Size (mm) 12

L4 (mm) 12

Square Size (mm) 9

Group Code T216
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Helix Angle R15
Application Ti (for titaniums)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Spiral Flute
Nut Tolerance 6HX
