Specifications
- AIMS SKU A0131310
- Brand Sutton Tools
- Model Number T2170300
- Barcode Number 9311963399782

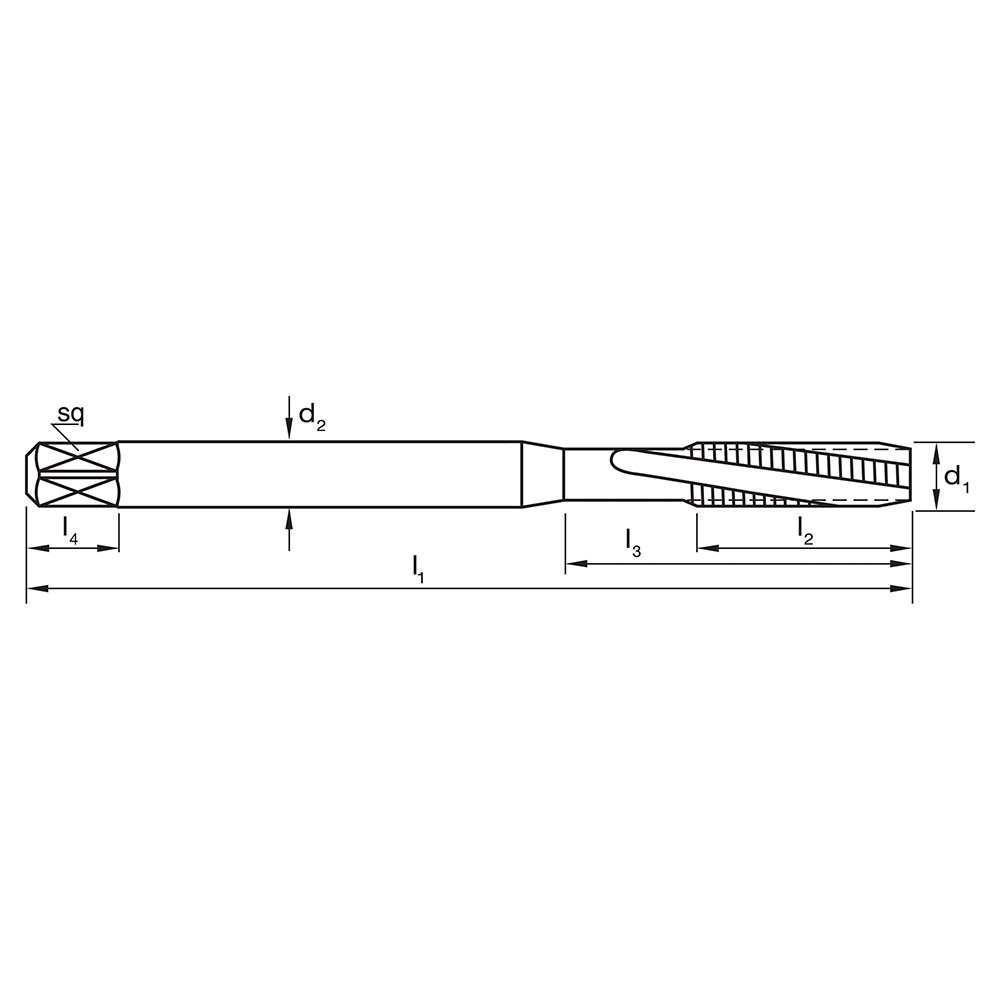

- L1 (mm) 56
- L2 (mm) 6
- L3 (mm) 18
- Drill Size (mm) 2.5
- L4 (mm) 6
- Square Size (mm) 2.7
- Chamfer Form C / 3 x P
- Limit & Nut Tolerance 6HX
- Geometry R10°
- Shank d2 (mm) 3.5
- Flute 3
- Colour Ring & Application Ni
- Diameter Size d1 (mm) M3
- Pitch Size (mm) 0.5
- Type Spiral Flute Tap
- Material PM-HSS Co
- Finish Bright (Brt)
- Group Code T217
SKU: A0131310

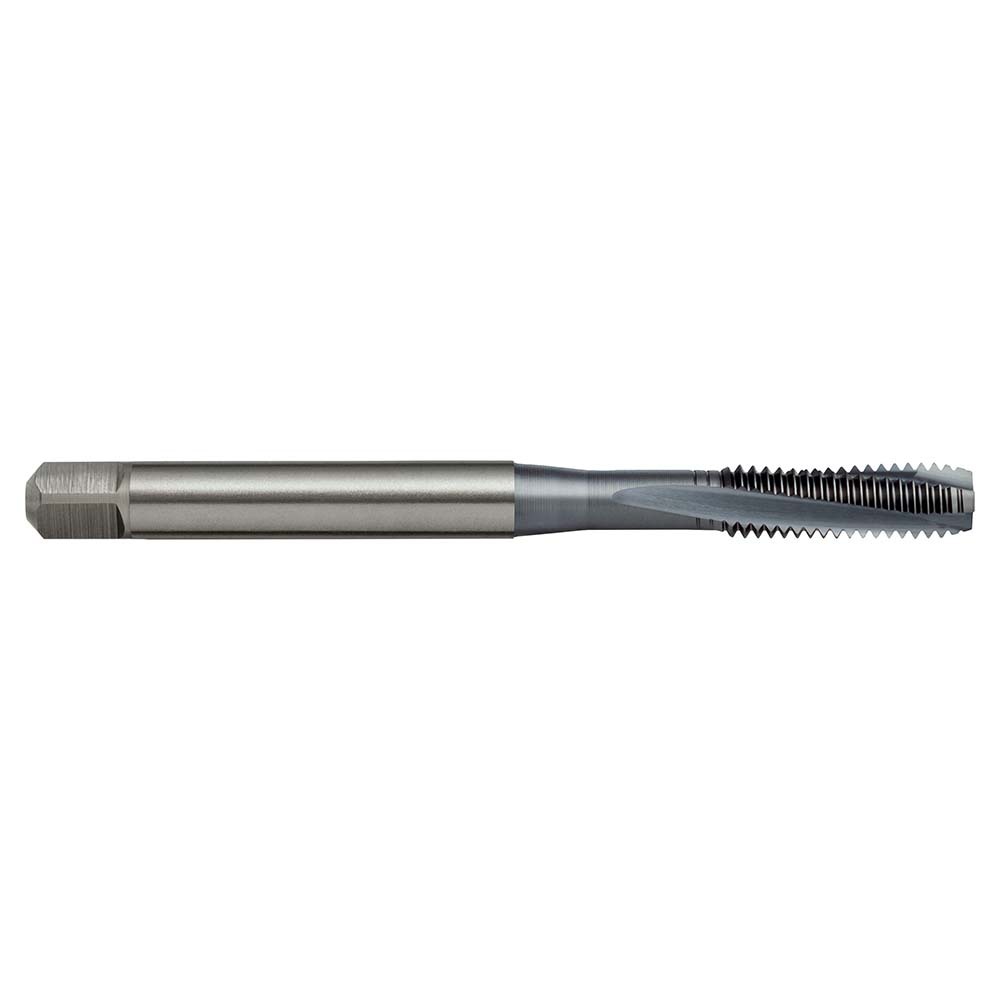

Sutton T2170300 Metric M3 x 0.5 Spiral Flute Tap R10 Ni PM-HSS Co
Sutton T217 Spiral Flute Tap - M - R10 Ni
$101.60
