Specifications

AIMS SKU A0131316
Brand Sutton Tools
Model Number T2181200
Barcode Number 9311963399843

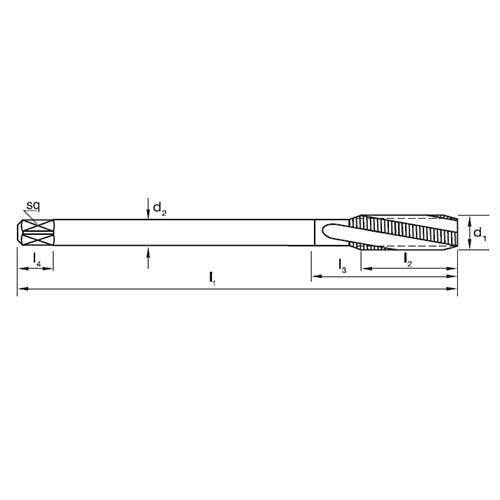

L1 (mm) 110
L2 (mm) 17.5
L3 (mm) -
Drill Size (mm) 10.2
L4 (mm) 10
Square Size (mm) 7
Chamfer Form C / 3 x P
Limit & Nut Tolerance 6HX
Geometry R10°
Shank d2 (mm) 9
Flute 3
Colour Ring & Application Ni
Diameter Size d1 (mm) M12
Pitch Size (mm) 1.75

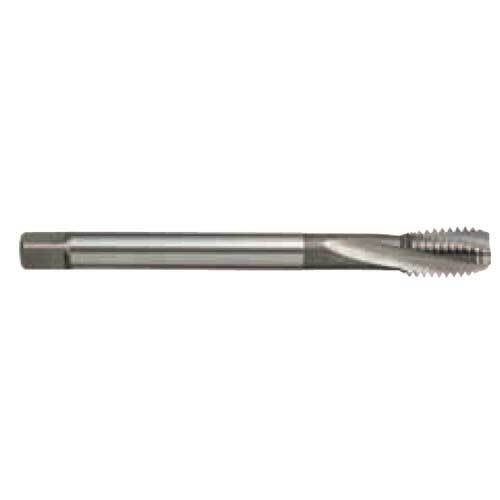

• Type Spiral Flute Tap
• Material PM-HSS Co
• Finish Bright (Brt)
• Group Code T218
