Specifications

AIMS SKU A0131320
Brand Sutton Tools
Model Number T2190300
Barcode Number 9311963385389

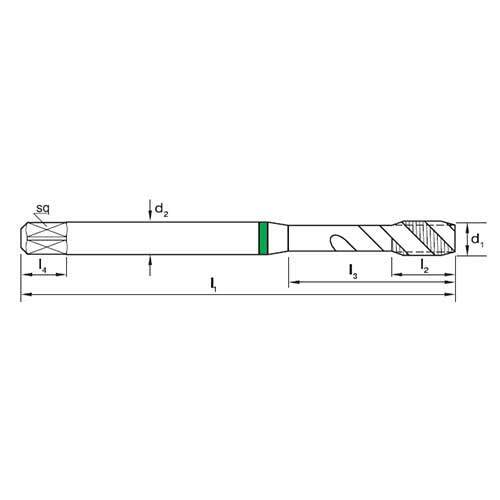

L1 (mm) 56
L2 (mm) 6
L3 (mm) 18
Drill Size (mm) 2.5
L4 (mm) 6
Square Size (mm) 2.7
Chamfer Form C / 2.5 x P
Limit & Nut Tolerance ISO 2 / 6H
Geometry R40°
Shank d2 (mm) 3.5
Flute 3
Colour Ring & Application UNI
Diameter Size d1 (mm) M3
Pitch Size (mm) 0.5

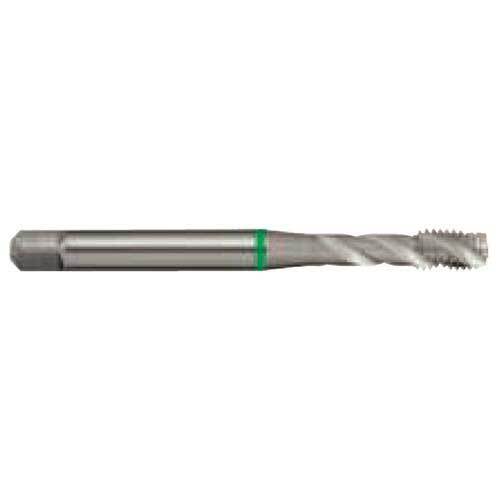

• Type Spiral Flute Tap
• Material PM-HSSE V3
• Finish Bright (Brt)
• Group Code T219
