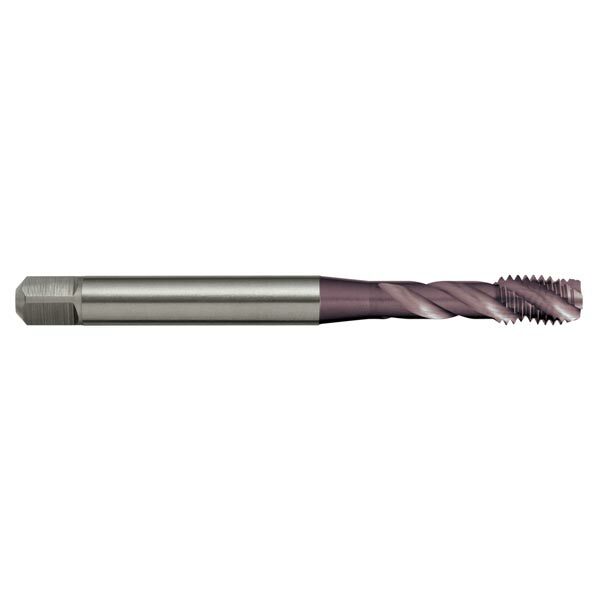

Sutton T227 Metric Spiral Flute Tap - R40 NH - Vanadium HSS TiAIN - Sutton Tools

Description

Features

Suitable for harder short chipping materials up to 42 HRc
Blind holes
Depths up to 2.5 x d1

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications

AIMS SKU A0013704

Brand Sutton Tools

Model Number T2270600

Barcode Number 9311963412986

Shank (mm) 6

L1 (mm) 80

L2 (mm) 10

L3 (mm) 30

z 3

Diameter (metric) M6

Drill Size (mm) 5

L4 (mm) 8

Square Size (mm) 4.9

Group Code T227
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Aluminium Nitride (TiAIN)
Lead Form C / 3 x P
Helix Angle R40
Application NH
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
