Specifications

AIMS SKU A0013717
Brand Sutton Tools
Model Number T2301400
Barcode Number 9311963413112

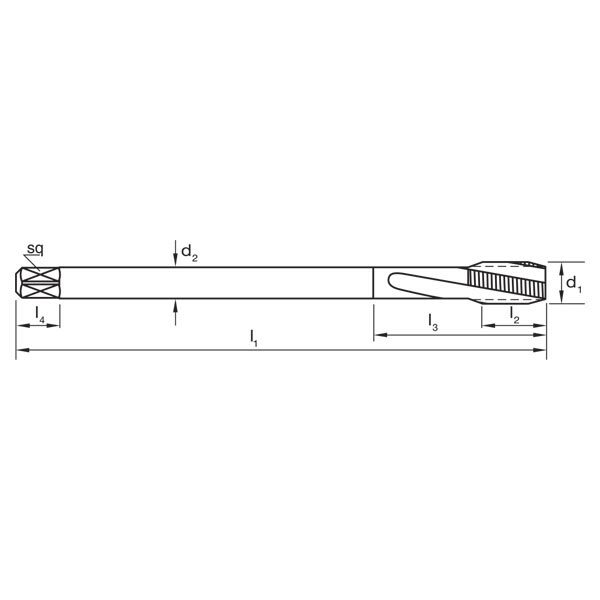

Shank (mm) 11
L1 (mm) 110
Pitch (mm) 2
L2 (mm) 20
z 3
Diameter (metric) M14
Drill Size (mm) 12
L4 (mm) 12
Square Size (mm) 9
• Group Code T230
• System of Measurement DIN376
• Thread Form ISO Metric Coarse (M)
• Material Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish Titanium Aluminium Nitride (TiAIN)
• Lead Form C / 3 x P
• Helix Angle R40
• Application NH
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 2.5xD
• Tap Type Spiral Flute
• Nut Tolerance ISO 2 / 6H
