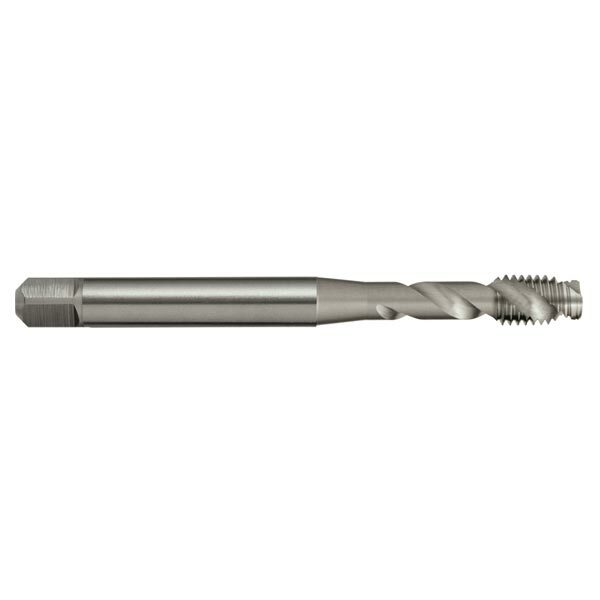

Sutton T231 Metric Spiral Flute Tap - R45 Al - Premium HSS - Sutton Tools

Description

Features

Suitable for use in wrought aluminium and low silicon aluminium
Blind holes
Depths up to 3 x d1
CrN for longer tool life

Specifications

Designation: Al (for malleable aluminum with long strips)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤ 12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤ 12% Si - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0013724

Brand Sutton Tools

Model Number T2310350

Barcode Number 9311963496658

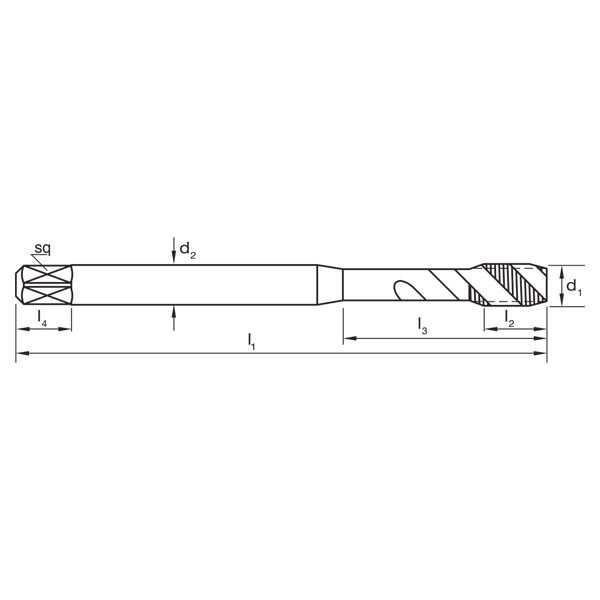

Shank (mm) 4

L1 (mm) 56

L2 (mm) 6

L3 (mm) 20

z 2

Diameter (metric) M3.5

Drill Size (mm) 2.9

L4 (mm) 6

Square Size (mm) 3

Group Code T231
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Helix Angle R45
Application Al (for malleable aluminum with long strips)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
