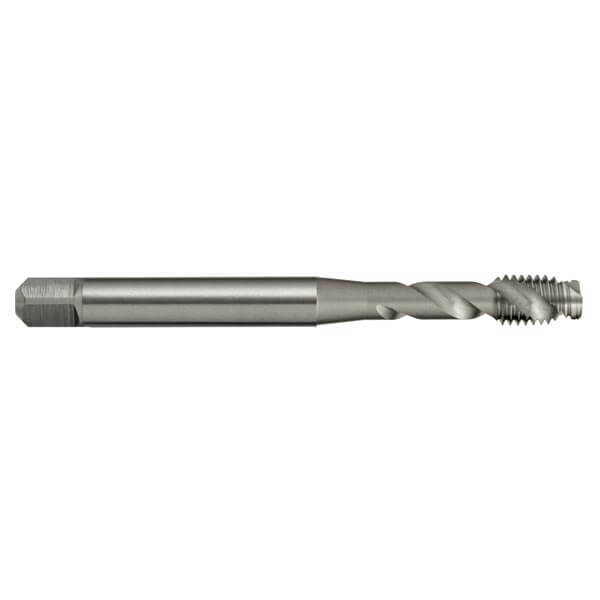

Sutton T233 Metric Spiral Flute Tap - R45 Al - Premium HSS CrN - Sutton Tools

Description

Features

Suitable for use in wrought aluminium and low silicon aluminium
Blind holes
Depths up to 3 x d1
CrN for longer tool life

Specifications

Designation: Al (for malleable alumimum with long chips)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Chromium Nitride (CrN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0013737

Brand Sutton Tools

Model Number T2330500

Barcode Number 9311963383576

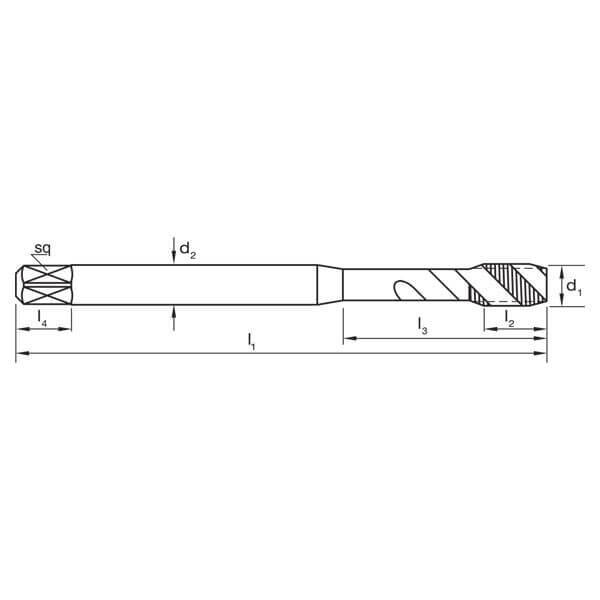

Shank (mm) 6

L1 (mm) 70

L2 (mm) 8

L3 (mm) 25

z 2

Diameter (metric) M5

Drill Size (mm) 4.2

L4 (mm) 8

Square Size (mm) 4.9

Group Code T233
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Chromium Nitride (CrN)
Lead Form C / 3 x P
Helix Angle R45
Application Al (for malleable alumimum with long chips)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
