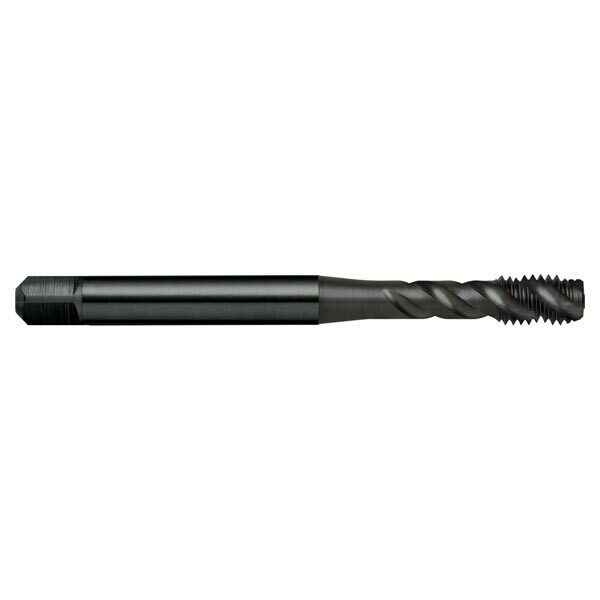

Sutton T237 Metric Spiral Flute Tap - R45 W - Premium HSS Blue - Sutton Tools

Description

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0013765

Brand Sutton Tools

Model Number T2370500

Barcode Number 9311963509112

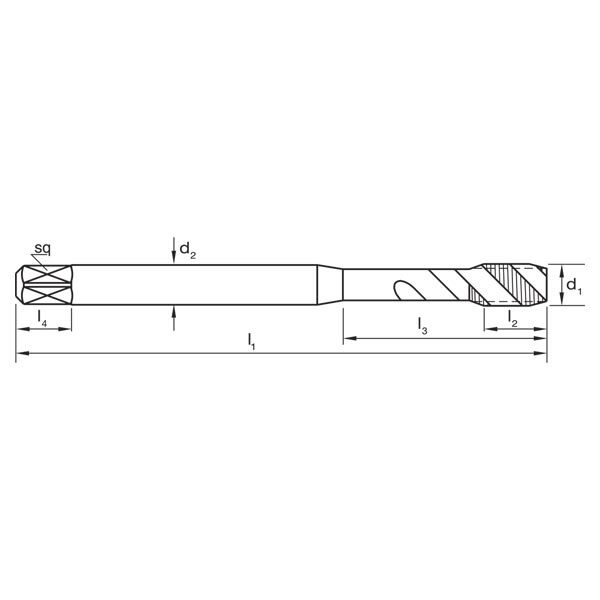

Shank (mm) 6

L1 (mm) 70

L2 (mm) 8

L3 (mm) 25

z 3

Diameter (metric) M5

Drill Size (mm) 4.2

L4 (mm) 8

Square Size (mm) 4.9

Group Code T237
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form C / 3 x P
Helix Angle R45
Application W (for soft materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
