Specifications

AIMS SKU A0013776
Brand Sutton Tools
Model Number T2390500
Barcode Number 9311963383484

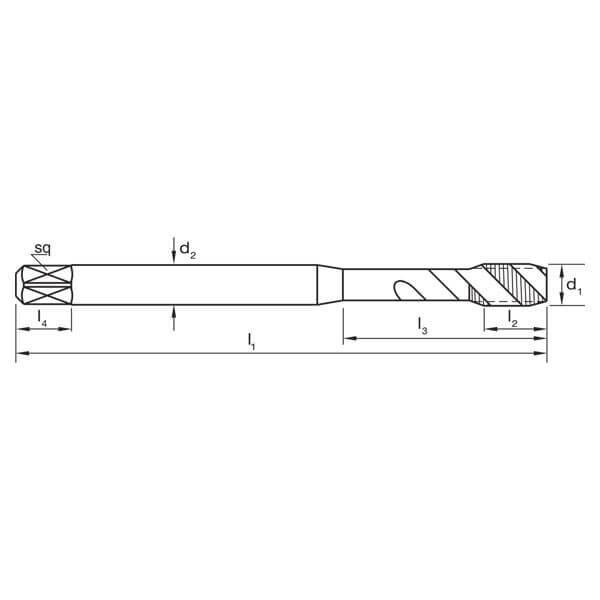

Shank (mm) 6
L1 (mm) 70
L2 (mm) 8
L3 (mm) 25
z 3
Diameter (metric) M5
Drill Size (mm) 4.2
L4 (mm) 8
Square Size (mm) 4.9
• Group Code T239
• System of Measurement DIN371
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Chromium Nitride (CrN)
• Lead Form C / 3 x P
• Helix Angle R45
• Application Cu (for copper materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Flute
• Nut Tolerance ISO 2 / 6H
