Specifications

AIMS SKU A0013780
Brand Sutton Tools
Model Number T2400600
Barcode Number 9311963383521

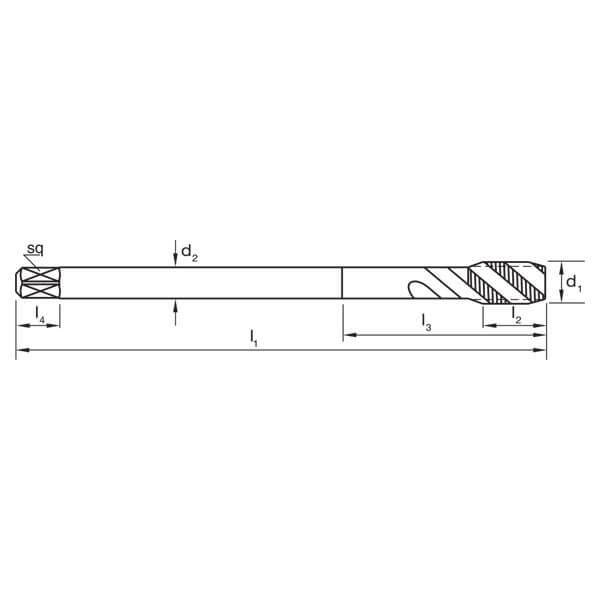

Shank (mm) 4.5
L1 (mm) 80
Pitch (mm) 1
L2 (mm) 10
z 3
Diameter (metric) M6
Drill Size (mm) 5
L4 (mm) 6
Square Size 3.4
• Group Code T240
• System of Measurement DIN376
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Chromium Nitride (CrN)
• Lead Form C / 3 x P
• Helix Angle R45
• Application Cu (for copper materials)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Flute
• Nut Tolerance ISO 2 / 6H
