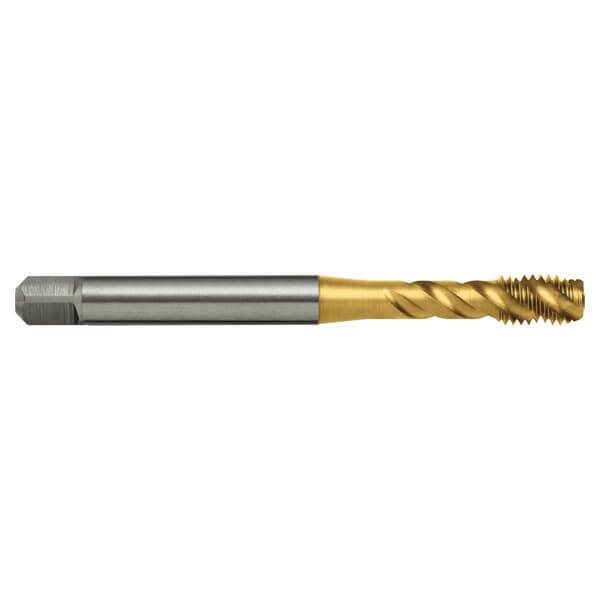

Sutton T241 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite - Sutton Tools

Description

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0013787

Brand Sutton Tools

Model Number T2410350

Barcode Number 9311963401027

Shank (mm) 4

L1 (mm) 56

L2 (mm) 6

L3 (mm) 20

z 3

Diameter (metric) M3.5

Drill Size (mm) 2.9

L4 (mm) 6

Square Size (mm) 3

Group Code T241
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form C / 3 x P
Helix Angle R45
Application W (for soft materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
