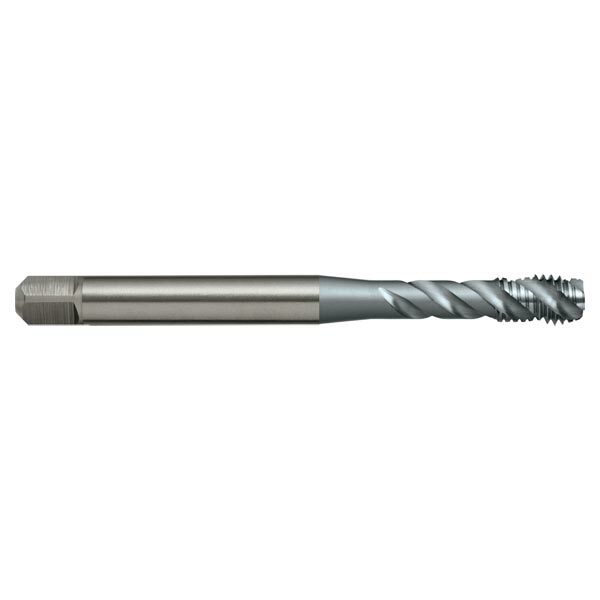

Sutton T262 UNC Spiral Flute Tap - R45 VADH - Premium HSS TiCN - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications

AIMS SKU A0014021

Brand Sutton Tools

Model Number T2620351

Barcode Number 9311963708508

Diameter (inch) 6

TPI 32

Shank (mm) 4

L1 (mm) 56

L2 (mm) 6

L3 (mm) 19

z 3

Drill Size (mm) 2.8

L4 (mm) 6

Square Size (mm) 3

Group Code T262
System of Measurement DIN2184-1
Thread Form UNC
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Helix Angle R45
Application VA (for stainless and tough steels)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Flute
Nut Tolerance 2B
