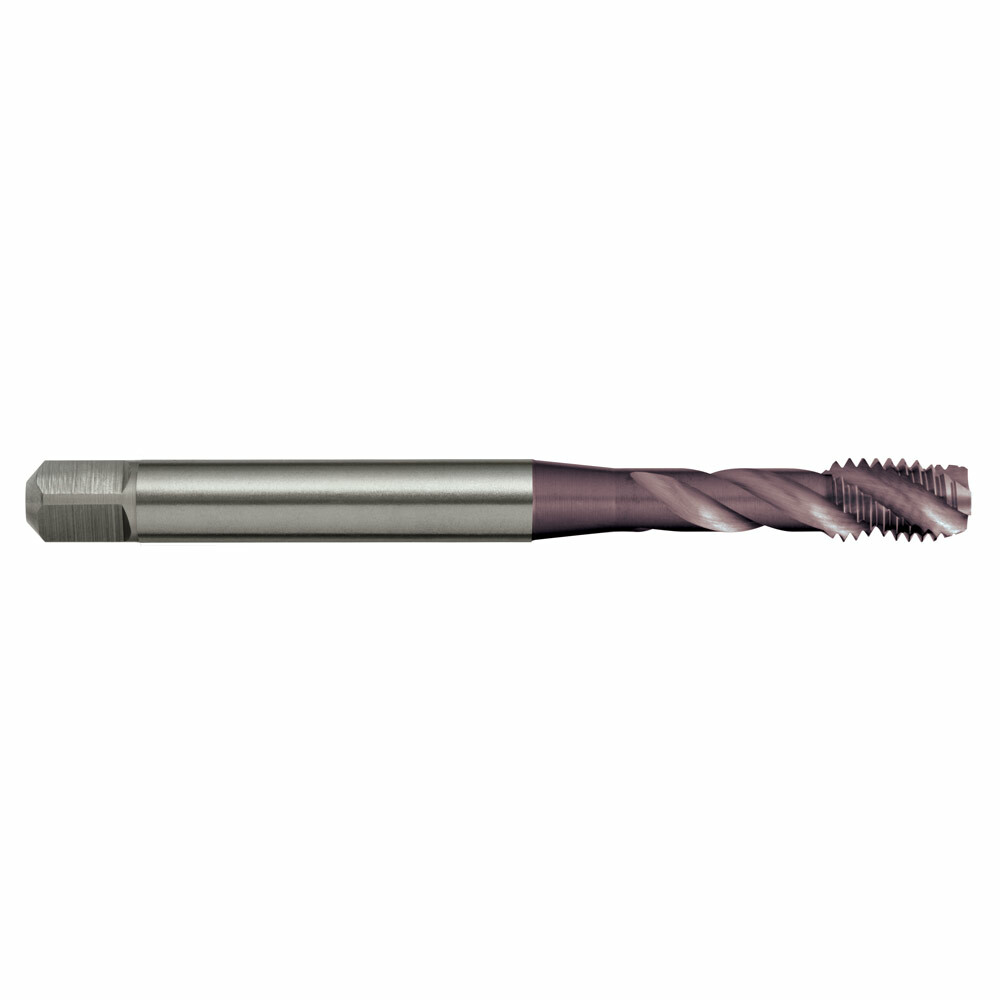

Sutton T267 UNC Spiral Flute Tap - R40 NH - Vanadium HSS TiAIN - Sutton Tools

Description

Features

Use in harder short chipping materials up to 42 HRc
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications

AIMS SKU A0014068

Brand Sutton Tools

Model Number T2670794

Barcode Number 9311963428871

Diameter (inch) 5/16

Shank (mm) 8

L1 (mm) 90

L2 (mm) 13

L3 (mm) 34

z 3

Drill Size (mm) 6.6

L4 (mm) 9

Square Size (mm) 6.2

Group Code T267
System of Measurement DIN2184-1
Thread Form UNC
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Titanium Aluminium Nitride (TiAIN)
Lead Form C / 3 x P
Helix Angle R40
Application NH
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
