Specifications
- AIMS SKU A0014077
- Brand Sutton Tools
- Model Number T2730318
- Barcode Number 9311963708034
- Diameter (inch) 5
- Shank (mm) 3.5

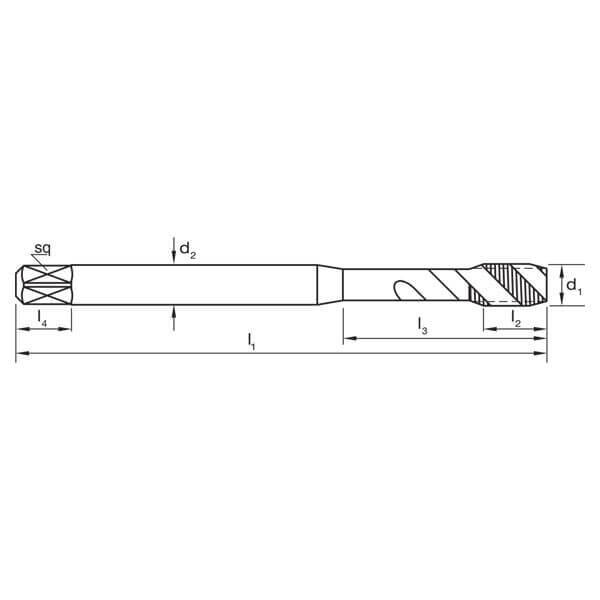

- L1 (mm) 56
- L2 (mm) 6
- L3 (mm) 18
- z 3
- Drill Size (mm) 2.6
- L4 (mm) 6
- Square Size (mm) 2.7
- Group Code T273
- System of Measurement DIN2184-1
- Thread Form UNC
- Material Premium Grade High Speed Steel (HSSE-V3)
- Finish Titanium Nitride (TiN)
- Lead Form C / 3 x P
- Helix Angle R40
- Application N (for normal and general purpose type materials)
- Shank Form Reinforced Shank (with square drive)
- Max Cut Depth 2.5xD
- Tap Type Spiral Flute
- Nut Tolerance 2B
SKU: A0014077

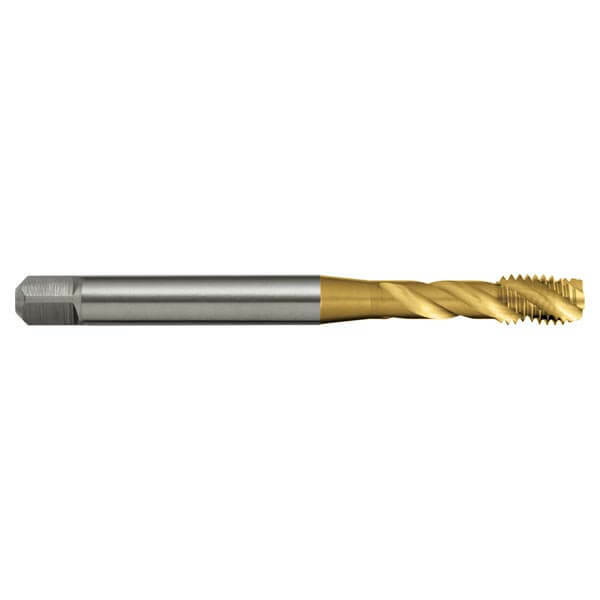

Sutton T2730318 UNC 5 x 40 Spiral Flute Tap - R40 N - HSSE V3 TiN
Suttons Spiral Flute Taps - R40 N
$64.90
