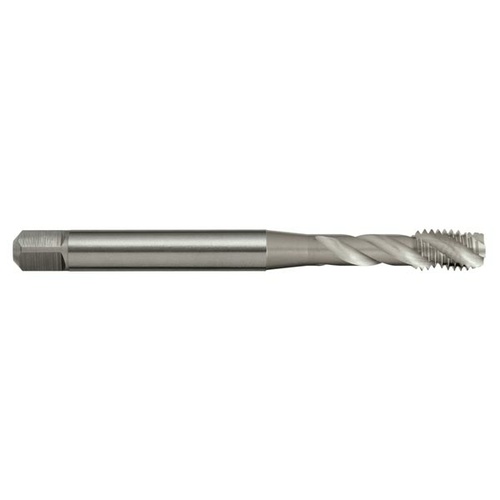

Sutton T275 UNF Spiral Flute Tap - R40 N - Premium HSS - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0014093

Brand Sutton Tools

Model Number T2750351

Barcode Number 9311963151526

Diameter (inch) #6

TPI 40

Shank (mm) 4

L1 (mm) 56

L2 (mm) 6

L3 (mm) 20

z 3

Drill Size (mm) 2.9

L4 (mm) 6

Square Size (mm) 3

Group Code T275
System of Measurement DIN2184-1
Thread Form UNF
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Helix Angle R40
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
Nut Tolerance 2B
