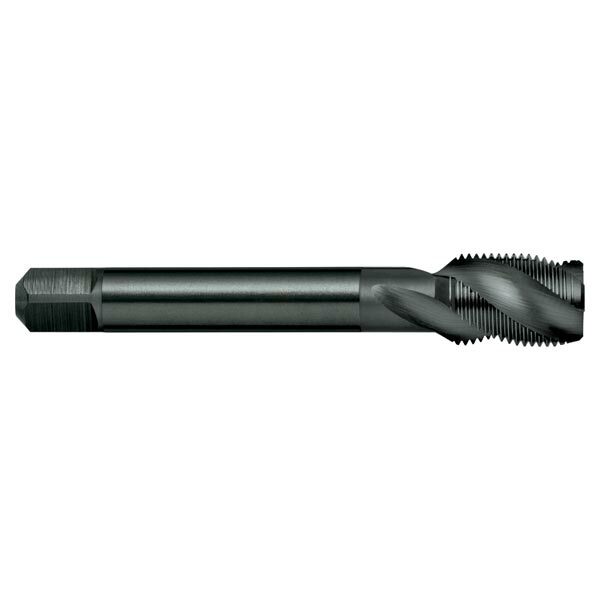

Sutton T282 G-BSPF Spiral Flute Tap - R40 N - Premium HSS Blue - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed

Specifications

AIMS SKU A0014153

Brand Sutton Tools

Model Number T2821316

Barcode Number 9311963187624

TPI 19

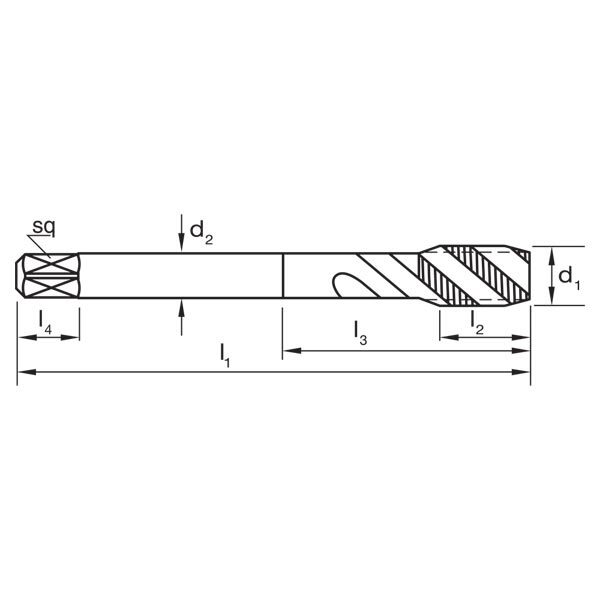

Shank (mm) 11

L1 (mm) 100

Diameter G1/4

L2 (mm) 22

z 3

Drill Size (mm) 11.8

L4 (mm) 12

Square Size (mm) 9

Group Code T282
System of Measurement DIN5156
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Steam Oxide (Blue)
Lead Form C / 3 x P
Helix Angle R40
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
Nut Tolerance ISO 228
