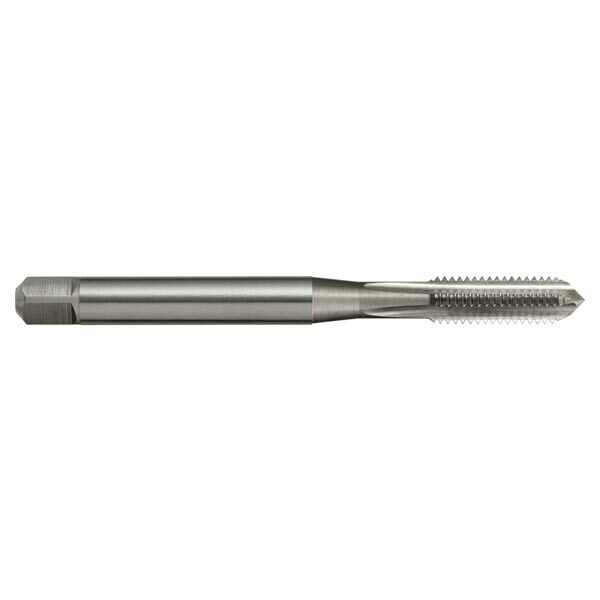

Sutton T286 Metric Straight Flute Tap - Premium HSS - Sutton Tools

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0014190

Brand Sutton Tools

Model Number T2860350

Barcode Number 9311963396972

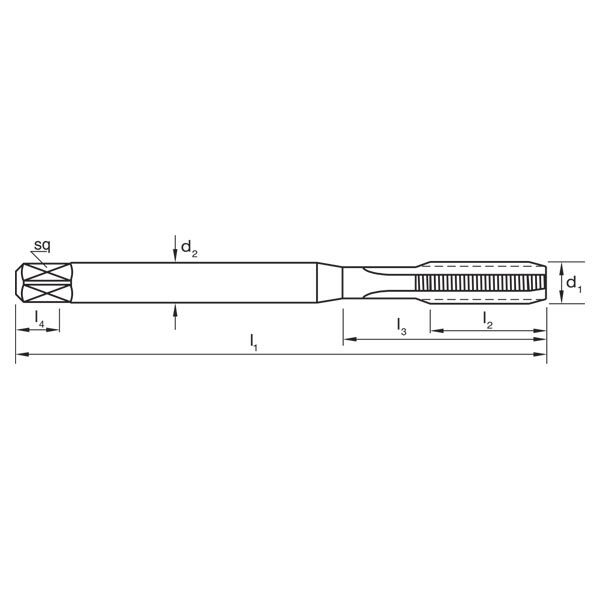

Shank (mm) 4

L1 (mm) 56

L2 (mm) 13

L3 (mm) 20

z 3

Diameter (metric) M3.5

Drill Size (mm) 2.9

L4 (mm) 6

Square Size (mm) 3

Group Code T286
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Straight Flute
Nut Tolerance ISO 2 / 6H
