Specifications

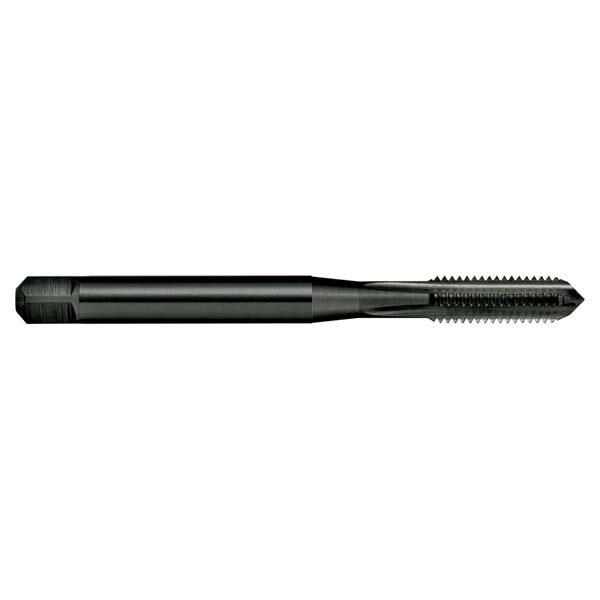

AIMS SKU A0014234
Brand Sutton Tools
Model Number T2900500
Barcode Number 9311963121772

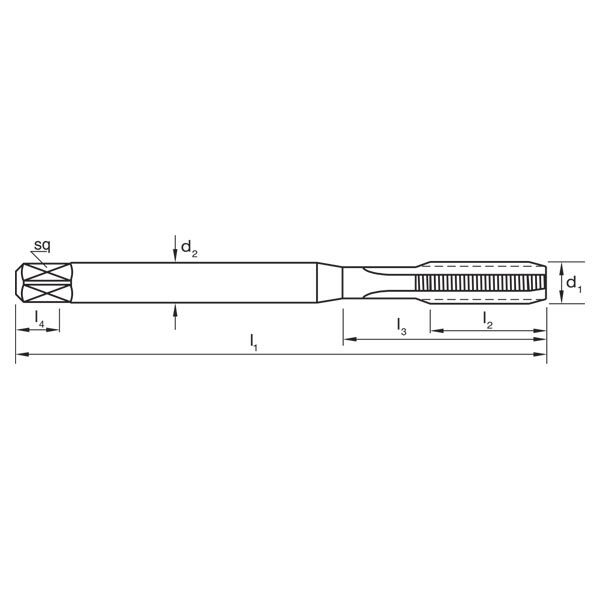

Shank (mm) 6
L1 (mm) 70
L2 (mm) 16
L3 (mm) 25
z 4
Diameter (metric) M5
Drill Size (mm) 4.2
L4 (mm) 8
Square Size (mm) 4.9
• Group Code T290
• System of Measurement DIN371
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Plasma Nitride (Ni) + Steam Oxide (Blue)
• Lead Form C / 3 x P
• Application GG (for cast iron)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Straight Flute
• Nut Tolerance 6HX
