Specifications

AIMS SKU A0014251
Brand Sutton Tools
Model Number T2930600
Barcode Number 9311963108056

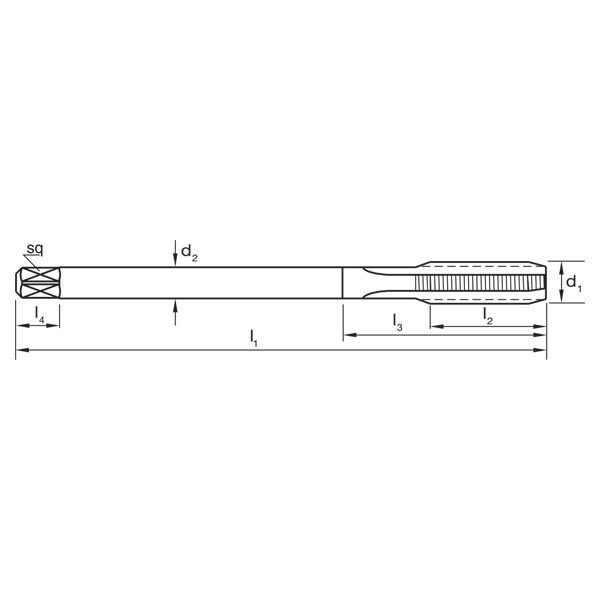

Shank (mm) 4.5
L1 (mm) 80
Pitch (mm) 1
L2 (mm) 19
z 4
Diameter (metric) M6
Drill Size (mm) 5
L4 (mm) 6
Square Size (mm) 3.4
• Group Code T293
• System of Measurement DIN376
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Application GG (for cast iron materials)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Straight Flute
• Nut Tolerance 6HX
