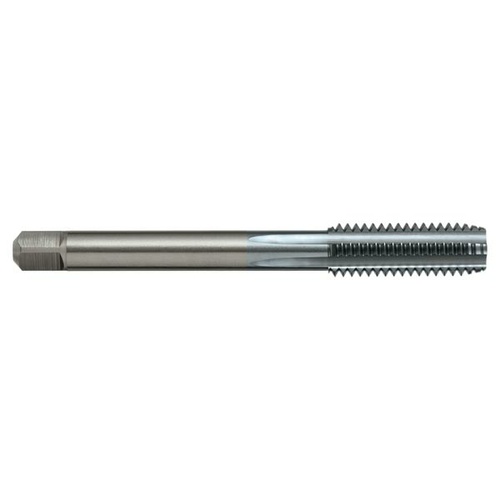

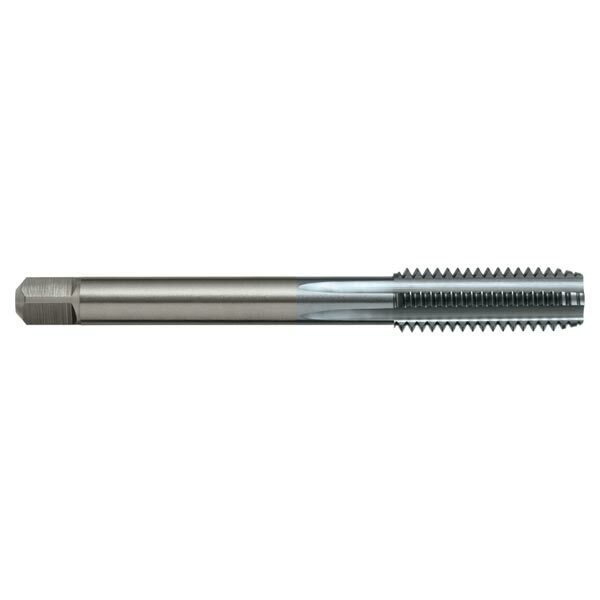

Sutton T295 Metric Straight Flute Tap - 11% Cobalt Steel TiCN - Sutton Tools

Description

Features

Use in hardened steels 42-52 HRc
Through & blind holes
Depths up to 1.5 x d1

Specifications

Designation: XH (for extra hard materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Applications

Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Pearlitic
Hardened steel:Hardened & Tempered
Cast Iron - Chilled: Cast

Specifications

AIMS SKU A0014267

Brand Sutton Tools

Model Number T2950300

Barcode Number 9311963453699

Shank (mm) 3.5

L1 (mm) 46

L2 (mm) 11

L3 (mm) 18

z 4

Diameter (metric) M3

Drill Size (mm) 2.55

L4 (mm) 6

Square Size (mm) 2.7

Group Code T295
System of Measurement Sutton
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (SPM-HSS Co11%)
Finish Titanium Carbonitride (TiCN)
Lead Form D / 4 x P
Application XH (for extra hard materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Straight Flute
Nut Tolerance 6HX
