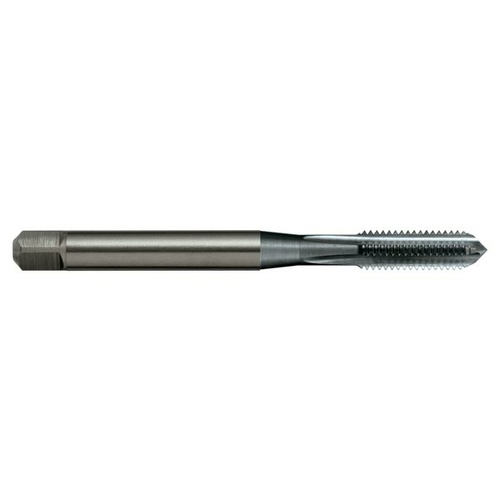

Specifications

AIMS SKU A0014278
Brand Sutton Tools
Model Number T2960500
Barcode Number 9311963420363

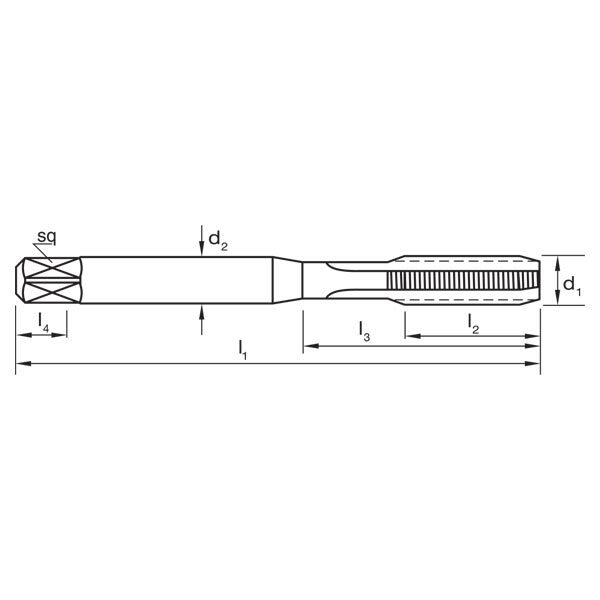

Shank (mm) 6
L1 (mm) 70
L2 (mm) 16
L3 (mm) 25
z 4
Diameter (metric) M5
Drill Size (mm) 4.3
L4 (mm) 8
Square Size (mm) 4.9
• Group Code T296
• System of Measurement DIN371 / DIN376
• Thread Form ISO Metric Coarse (M)
• Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Application VH (for very hard materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1.5xD
• Tap Type Straight Flute
• Nut Tolerance 6HX
