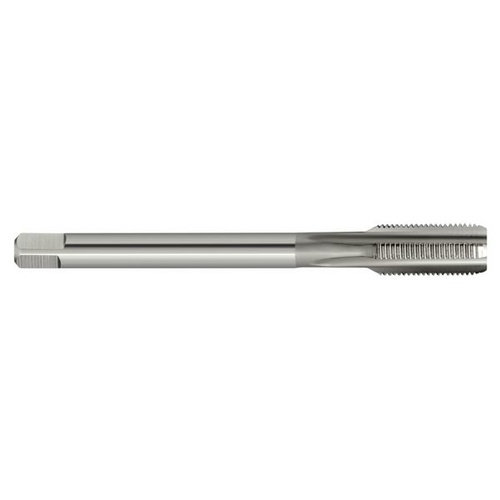

Sutton T298 Metric Fine Straight Flute Tap - Premium HSS - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Through & blind holes
Suitable for machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1xD A
Shank Form: ISO Metric Fine (MF)
X: als
Type: Straight Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0014294

Brand Sutton Tools

Model Number T2980302

Barcode Number 9311963513966

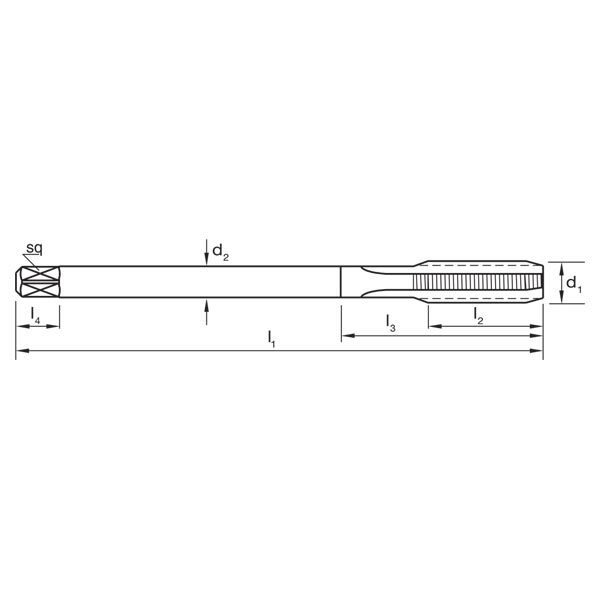

Shank (mm) 2.2

L1 (mm) 56

Pitch (mm) 0.35

L2 (mm) 8

z 3

Diameter (metric) MF3

Drill Size (mm) 2.65

Group Code T298
System of Measurement DIN374
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Application N (for normal general purpose type materials)
Shank Form ISO Metric Fine (MF)
Max Cut Depth 1xD A
Tap Type Straight Flute
Nut Tolerance Form C / 3 x P
