Specifications

AIMS SKU A0014336
Brand Sutton Tools
Model Number T3000604
Barcode Number 9311963514628

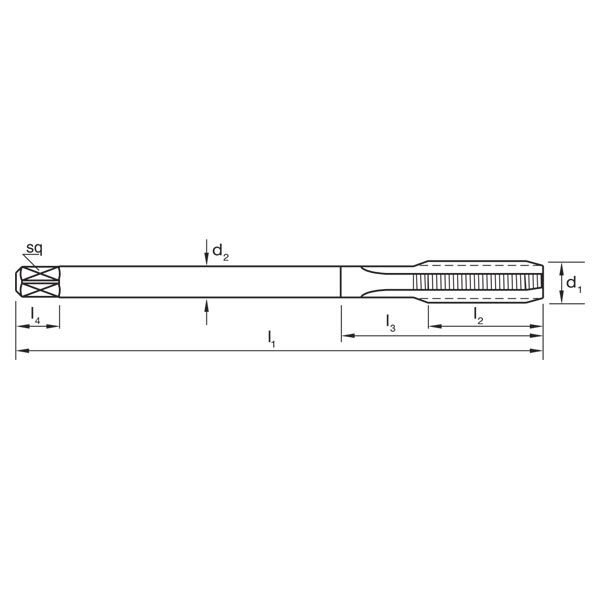

Shank (mm) 4.5
L1 (mm) 80
Pitch (mm) 0.75
L2 (mm) 14
z 4
Diameter (metric) MF6
Drill Size (mm) 5.3
L4 (mm) 6
Square Size (mm) 3.4
• Group Code T300
• System of Measurement DIN374
• Thread Form ISO Metric Fine (MF)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Plasma Nitride (Ni) + Steam Oxide (Blue)
• Lead Form C / 3 x P
• Application GG (for cast iron)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Straight Flute
• Nut Tolerance 6HX
