Specifications

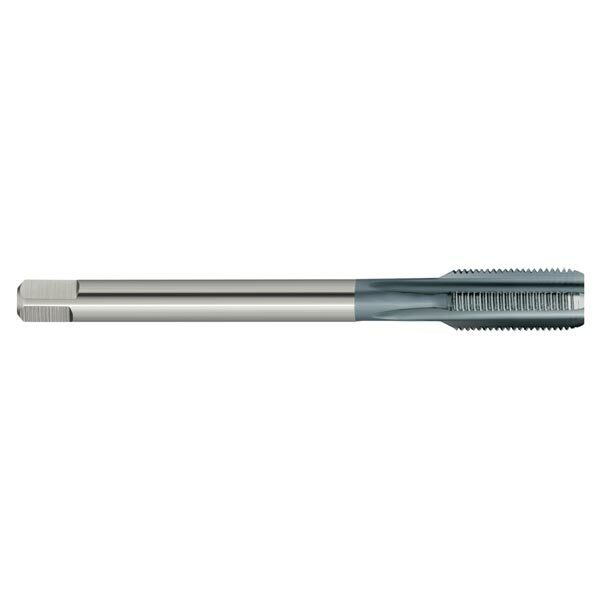

AIMS SKU A0014347
Brand Sutton Tools
Model Number T3010403
Barcode Number 9311963514734
Shank (mm) 2.8
L1 (mm) 63
Pitch (mm) 0.5
L2 (mm) 10
z 4
Diameter (metric) MF4
Drill Size (mm) 3.5
L4 (mm) 5
Square Size (mm) 2.1
• Group Code T301
• System of Measurement DIN374
• Thread Form ISO Metric Fine (MF)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Application GG (for cast iron)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Straight Flute
• Nut Tolerance 6HX
