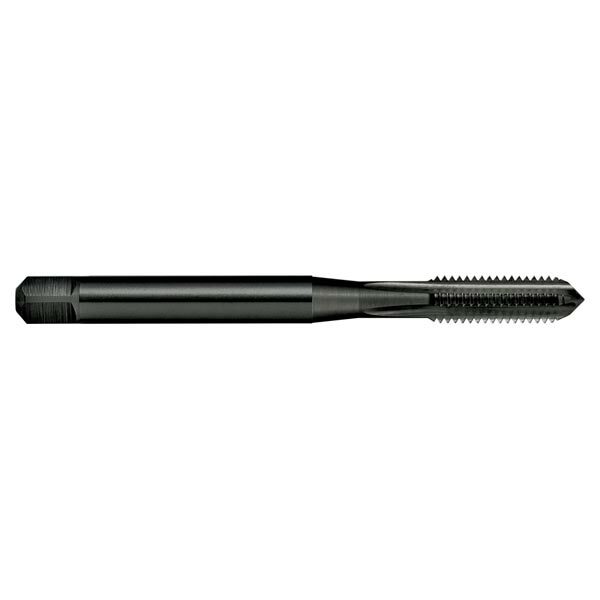

Sutton T302 UNC Straight Flute Tap - Premium HSS Ni/Blue - Sutton Tools

Description

Features

Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
Through & blind holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2BX
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Specifications

AIMS SKU A0014360

Brand Sutton Tools

Model Number T3020635

Barcode Number 9311963429168

Diameter (inch) 1/4

TPI 20

Shank (mm) 7

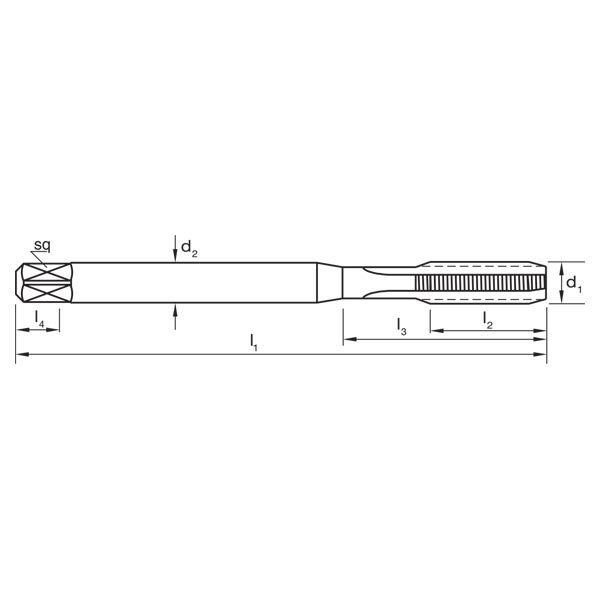

L1 (mm) 80

L2 (mm) 19

L3 (mm) 30

z 4

Drill Size (mm) 5.1

L4 (mm) 8

Square Size (mm) 5.5

Group Code T302
System of Measurement DIN2184-1
Thread Form UNC
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Plasma Nitride (Ni) + Steam Oxide (Blue)
Lead Form C / 3 x P
Application GG (for cast iron)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Straight Flute
Nut Tolerance 2BX
