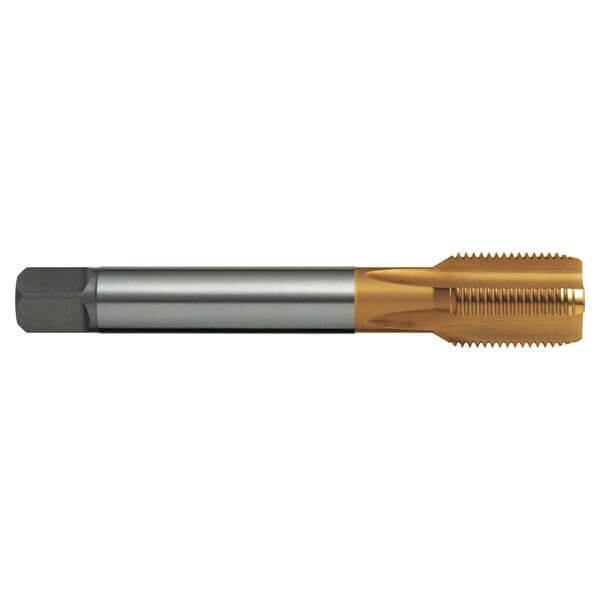

Sutton T305 BSPF Straight Flute Tap - Premium HSS Tinite - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Through & blind holes
Suitable for machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0014378

Brand Sutton Tools

Model Number T3050973

Barcode Number 9311963152585

Shank (mm) 7

L1 (mm) 90

Diameter G1/8

Pitch (mm) 28

L2 (mm) 20

z 4

Drill Size (mm) 8.8

L4 (mm) 8

Square Size (mm) 5.5

Group Code T305
System of Measurement DIN5156
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form C / 3 x P
Application N (for normal and general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 1xD
Tap Type Straight Flute
Nut Tolerance ISO 228
