Specifications

AIMS SKU A0014386
Brand Sutton Tools
Model Number T3060973
Barcode Number 9311963406510
TPI 28

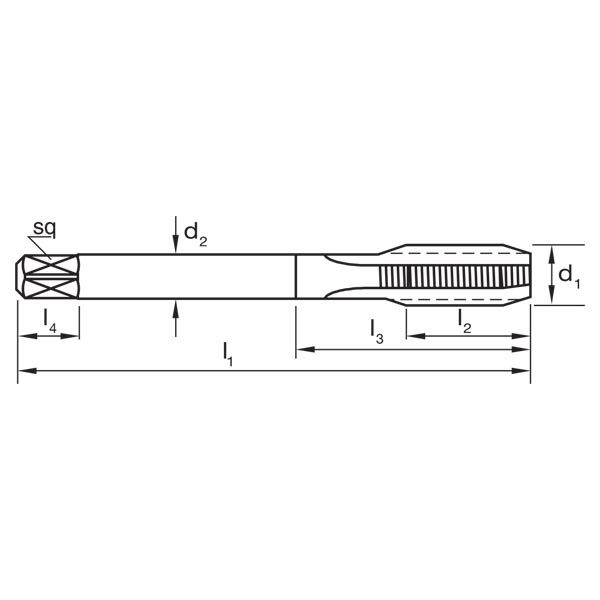

Shank (mm) 7
L1 (mm) 90
Diameter G1/8
L2 (mm) 20
z 4
Drill Size (mm) 8.8
L4 (mm) 8
Square Size (mm) 5.5
• Group Code T306
• System of Measurement DIN5156
• Thread Form ISO G Parallel Series 55° (G-BSPF)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Plasma Nitride (Ni) + Steam Oxide (Blue)
• Lead Form C / 3 x P
• Application GG (for cast iron)
• Shank Form Reduced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance ISO 228
