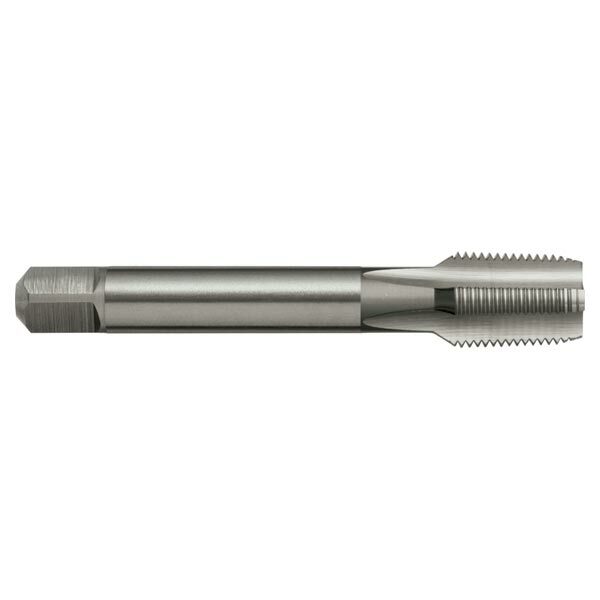

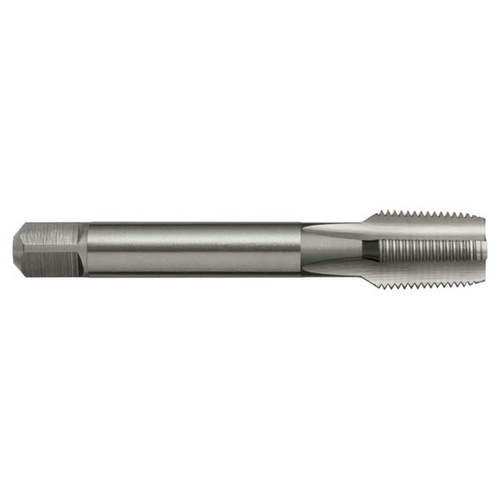

Sutton T308 NPT Straight Flute Tap - Premium HSS - Sutton Tools

Description

Features

Universal use
Suitable for materials up to 1000N/mm2
Through & blind holes

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Shank Form: Reduced Shank (with square drive)
X: als
Type: Taper
Standard: DIN2184-1
Thread Form: NPT
Nut Tolerance: ANSI B1.20.1
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014403

Brand Sutton Tools

Model Number T3081372

Barcode Number 9311963420615

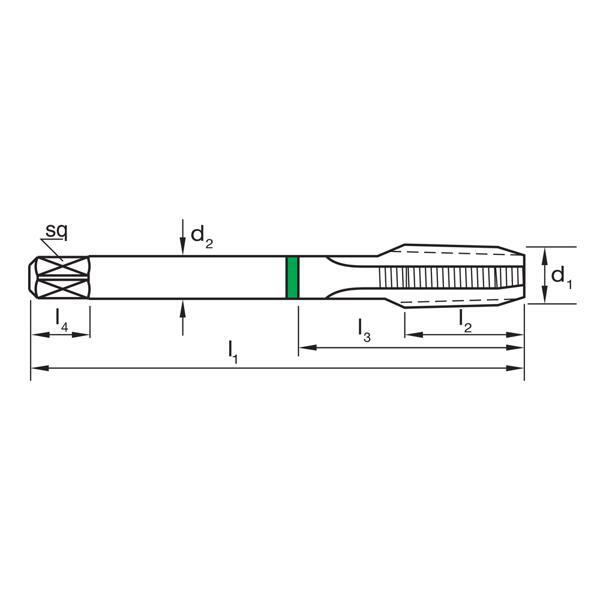

Diameter (inch) 1/4

TPI 18

Shank (mm) 11

L1 (mm) 100

L2 (mm) 22

z 4

Drill Size (mm) 10.8

L4 (mm) 12

Square Size (mm) 9

Group Code T308
System of Measurement DIN2184-1
Thread Form NPT
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Application UNI (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Tap Type Taper
Nut Tolerance ANSI B1.20.1
