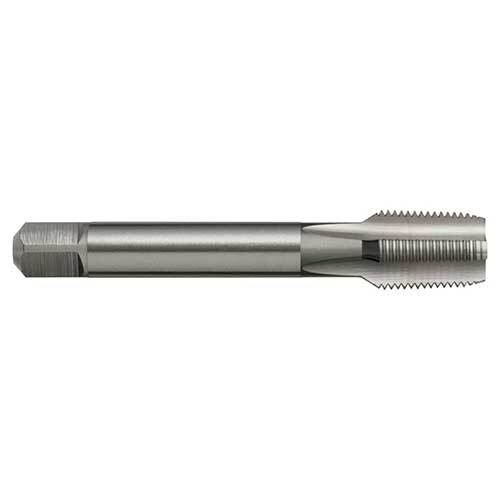

Sutton T3084216 NPT 1-1/4" x 11.5 Straight Flute Tap - HSSE V3 - Sutton Tools

Description

Sutton Straight Flute Tap - UNI

Universal use
Suitable for materials up to 1000N/mm2
Through & blind holes

Specifications

Designation: UNI (for normal general-purpose type materials)
Material: Premium Grade High-Speed Steel (HSSE-V3)
Finish: Bright
Shank Form: Reduced Shank (with square drive)
X: als
Type: Taper
Standard: DIN2184-1
Thread Form: NPT
Nut Tolerance: ANSI B1.20.1
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Aluminum & Magnesium, wrought alloy - Non-Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0131587

Brand Sutton Tools

Model Number T3084216

Barcode Number 9311963420660

Type Spiral Flute Tap

Material HSSE-V3

Finish Bright (Brt)

TPI 11.5

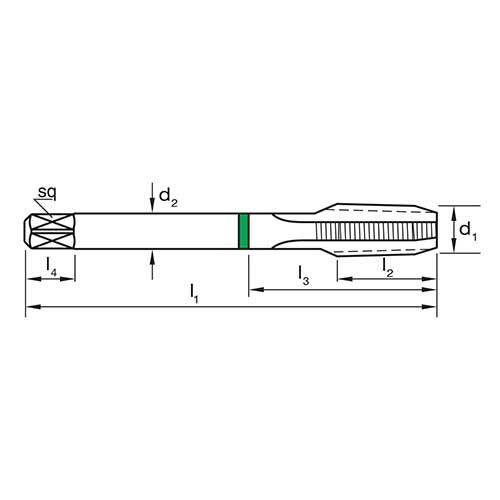

L1 (mm) 170

Diameter d1 (inch) 1-1/4

Flute 5

Shank d2 (mm) 32

Geometry 1:16 Taper

Sutton Designation UNI

Group Code T308

Limit & Nut Tolerance ANSI B1.20.1

Chamfer Form C / 2.5 x P

Square Size (mm) 24

L4 (mm) 27

Drill Size (mm) 37

L3 (mm) -

L2 (mm) 30
