Specifications

AIMS SKU A0014427
Brand Sutton Tools
Model Number T3110120
Barcode Number 9311963509846

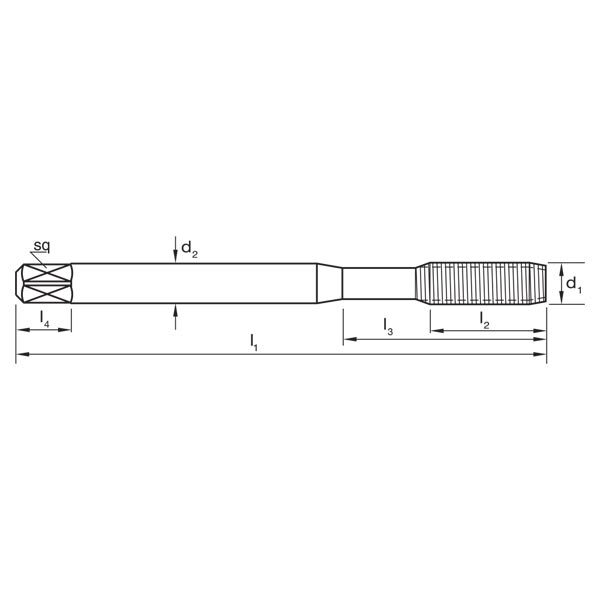

Shank (mm) 2.5
L1 (mm) 40
Pitch (mm) 0.25
L2 (mm) 6
Diameter (metric) M1.2
Drill Size (mm) 1.1
L4 (mm) 3
Square Size (mm) 2.1
• Group Code T311
• System of Measurement DIN2174
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Bright
• Lead Form D / 4 x P
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Fluteless - No Groove
• Nut Tolerance 6HX
