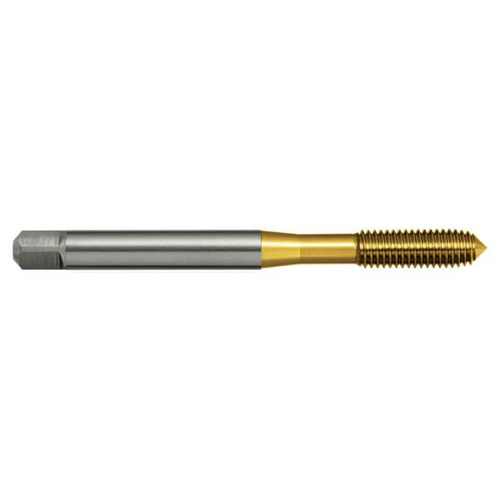

Sutton T315 Metric Thread Forming Tap - Premium HSS Tinite - Sutton Tools

Description

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - No Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form D / 4 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014464

Brand Sutton Tools

Model Number T3150140

Barcode Number 9311963554174

Shank (mm) 2.5

L1 (mm) 40

Pitch (mm) 0.3

L2 (mm) 6

Diameter (metric) M1.4

Drill Size (mm) 1.28

L4 (mm) 3

Square Size (mm) 2.1

Group Code T315
System of Measurement DIN2174
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead Form D / 4 x P
Application N (for normal and general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Fluteless - No Groove
Nut Tolerance 6HX
