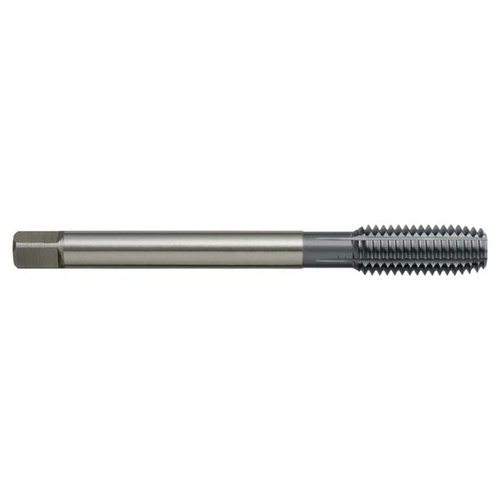

Sutton T3221400 Metric M14 x 2 Thread Forming Tap - HSSE V3 TiCN

Description

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove DIN2174
Standard: ISO Metric Coarse (M)
Thread Form: ISO Metric Coarse (M)
Lead: Form D / 4 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014505

Brand Sutton Tools

Model Number T3221400

Barcode Number 9311963513829

Shank (mm) 11

L1 (mm) 110

Pitch (mm) 2

L2 (mm) 30

Diameter (metric) M14

Drill Size (mm) 13.1

L4 (mm) 12

Square Size (mm) 9

Group Code T322
System of Measurement ISO Metric Coarse (M)
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Carbonitride (TiCN)
Lead Form D / 4 x P
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Fluteless - Multi Coolant Groove DIN2174
