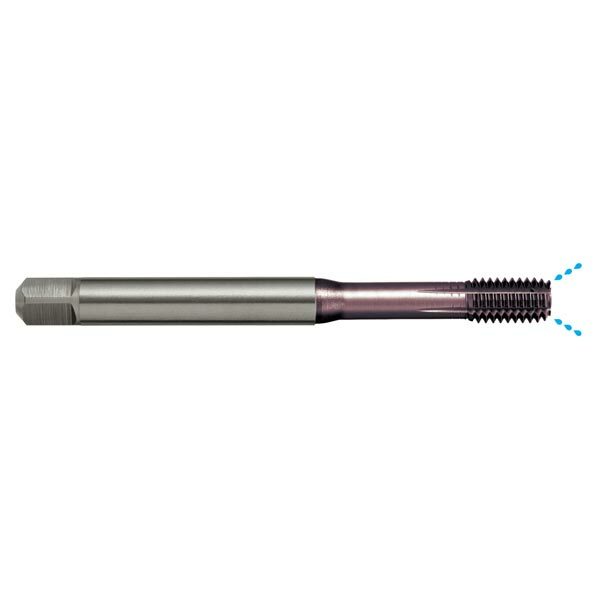

Sutton T3270500 M5 x 0.8 Thread Forming Tap - 11% Cobalt Steel TiAIN

Description

Features

SPM for superior performance
Application specific geometry
Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: ru
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C/0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0014528

Brand Sutton Tools

Model Number T3270500

Barcode Number 9311963420530

Shank (mm) 6

L1 (mm) 70

Pitch (mm) 0.8

L2 (mm) 13

L3 (mm) 25

Diameter (metric) M5

Drill Size (mm) 4.6

L4 (mm) 8

Square Size (mm) 4.9

Group Code T327
System of Measurement DIN2174
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (SPM-HSS Co11%)
Finish Titanium Aluminium Nitride (TiAIN)
Lead Form C / 3 x P
Application UNI (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Fluteless - Multi Coolant Groove
Nut Tolerance 6HX
