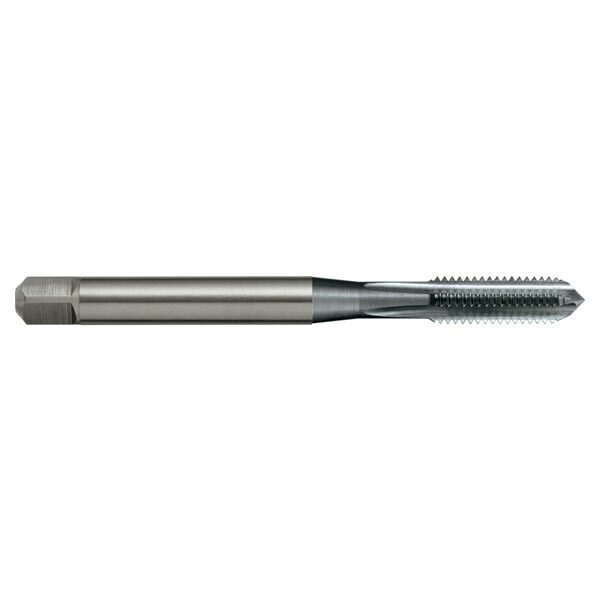

Sutton T335 Metric Straight Flute Tap - Cobalt Steel TiCN - Sutton Tools

Description

Features

For production tapping in die cast materials
PM-HSS Co for superior tool life
Form E for maximum thread depth in blind holes
Depths up to 1.5 x d1

Specifications

Designation: DC
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form E / 1.5 x P

Applications

Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications

AIMS SKU A0014543

Brand Sutton Tools

Model Number T3350600

Barcode Number 9311963508412

Shank (mm) 6

L1 (mm) 80

L2 (mm) 19

L3 (mm) 30

z 4

Diameter (metric) M6

Drill Size (mm) 5

L4 (mm) 8

Square Size (mm) 4.9

Group Code T335
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material High Speed Steel Cobalt (PM-HSS Co8%)
Finish Titanium Carbonitride (TiCN)
Lead Form E / 1.5 x P
Application DC
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Straight Flute
Nut Tolerance 6HX
