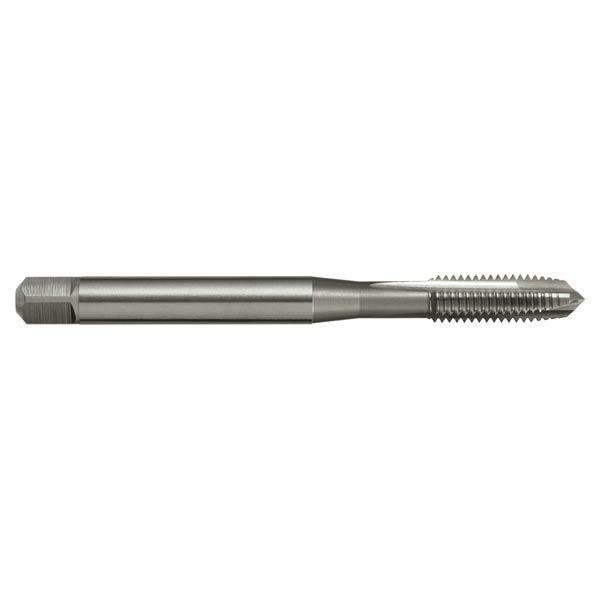

Sutton T3370300 Metric M3 x 0.5 Spiral Point Tap - Long - HSSE V3

Description

Features

For long reach applications
Suitable for materials up to 1000N/mm2
Depths up to 3 x d1
d2 and sq in accordance to DIN371

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0014550

Brand Sutton Tools

Model Number T3370300

Barcode Number 9311963450520

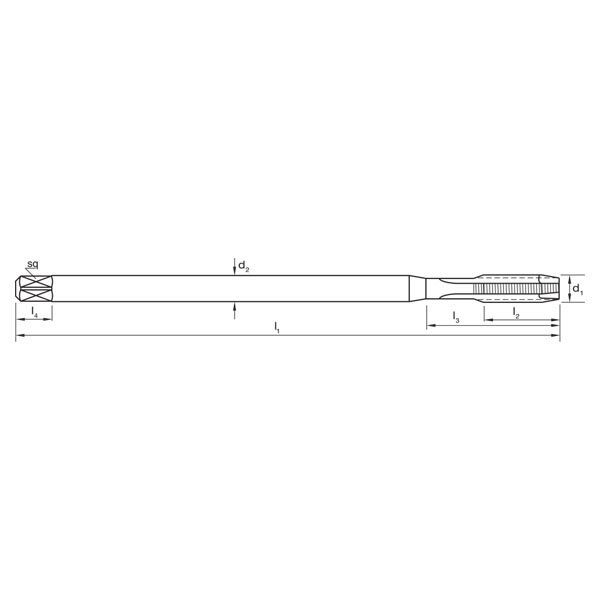

Shank (mm) 3.5

L1 (mm) 112

Pitch (mm) 0.5

L2 (mm) 11

z 3

Diameter (metric) M3

Drill Size (mm) 2.5

L4 (mm) 6

Square Size (mm) 2.7

Group Code T337
System of Measurement Sutton
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
