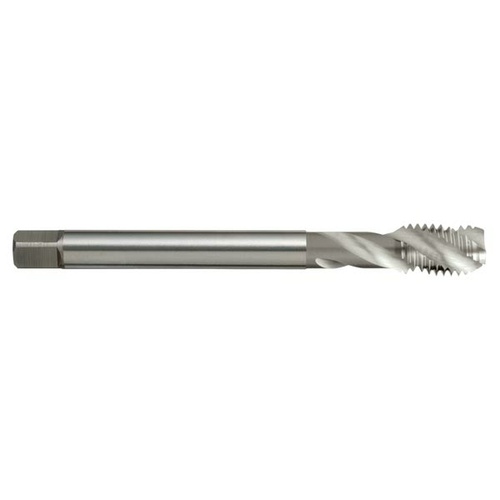

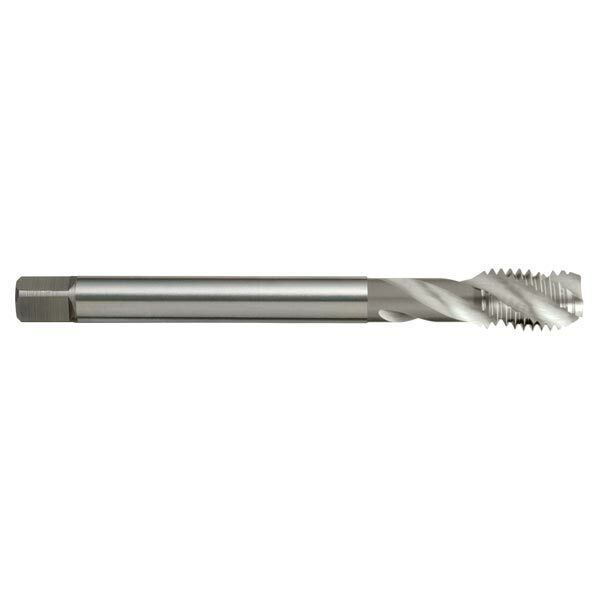

Sutton T3401000 M10 x 1.5 Spiral Flute Tap - R40 N Long - HSSE V3

Description

Features

For long reach applications
Suitable for materials up to 1000N/mm2
Depths up to 2.5 x d1
d2 and sq in accordance to DIN376

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0014566

Brand Sutton Tools

Model Number T3401000

Barcode Number 9311963450667

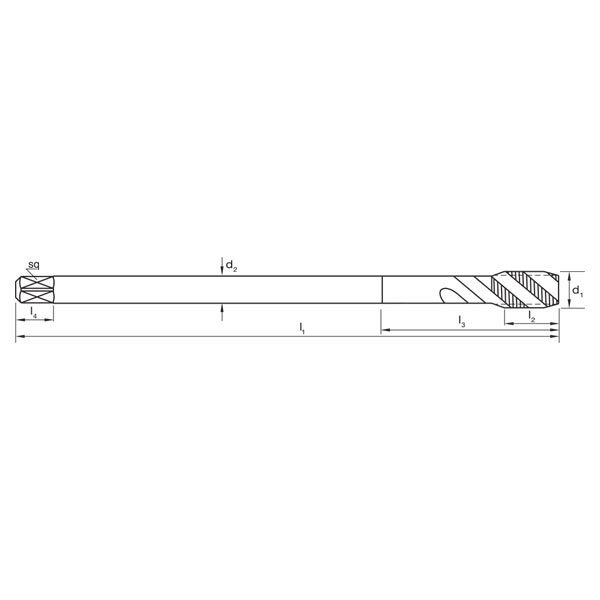

Shank (mm) 7

L1 (mm) 200

L2 (mm) 15

L3 (mm) 100

z 3

Diameter (metric) M10

Drill Size (mm) 8.5

L4 (mm) 8

Square Size (mm) 5.5

Group Code T340
System of Measurement Sutton
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Helix Angle R40
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 2.5xD
Tap Type Spiral Flute
Nut Tolerance ISO 2 / 6H
