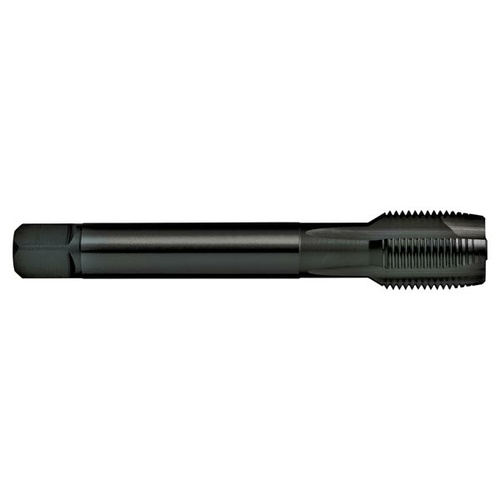

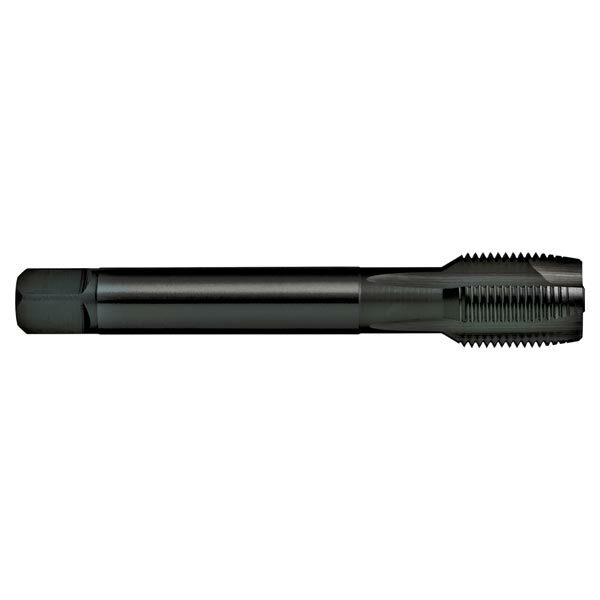

Sutton T349 BSPF Spiral Point Tap - Vanadium HSS Blue - Sutton Tools

Description

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Through holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Specifications

AIMS SKU A0014582

Brand Sutton Tools

Model Number T3491316

Barcode Number 9311963439723

TPI 19

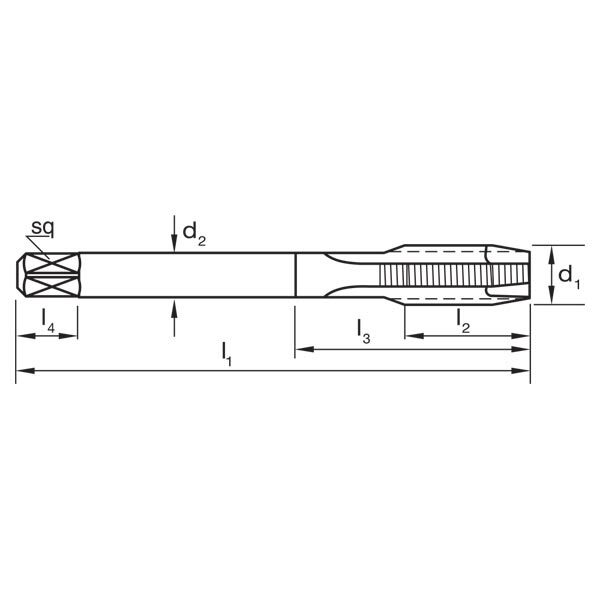

Shank (mm) 11

L1 (mm) 100

Diameter G1/4

L2 (mm) 22

z 3

Drill Size (mm) 11.8

L4 (mm) 12

Square Size (mm) 9

Group Code T349
System of Measurement DIN5156
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Steam Oxide (Blue)
Lead Form B / 4.5 x P
Application VA (for stainless and tough steels)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 228
