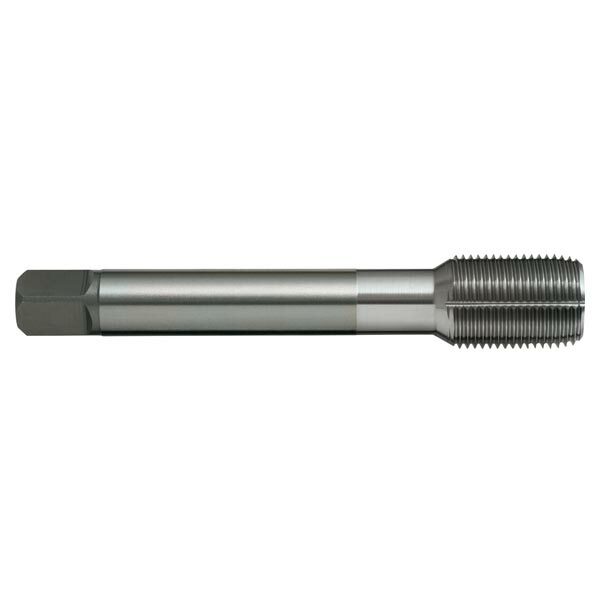

Sutton T3611316 BSPF G 1/4 x 19 Thread Forming Tap - HSSE V3

Description

Features

For cold forming of threads in materials with good flow characteristics
Brt - For non-ferrous materials
TiCN - Suitable for abrasive and difficult materials
Through or blind holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN5156
Thread Form: ISO G Parallel Series 55° (G-BSPF)
Nut Tolerance: ISO 228 X
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0014621

Brand Sutton Tools

Model Number T3611316

Barcode Number 9311963191744

TPI 19

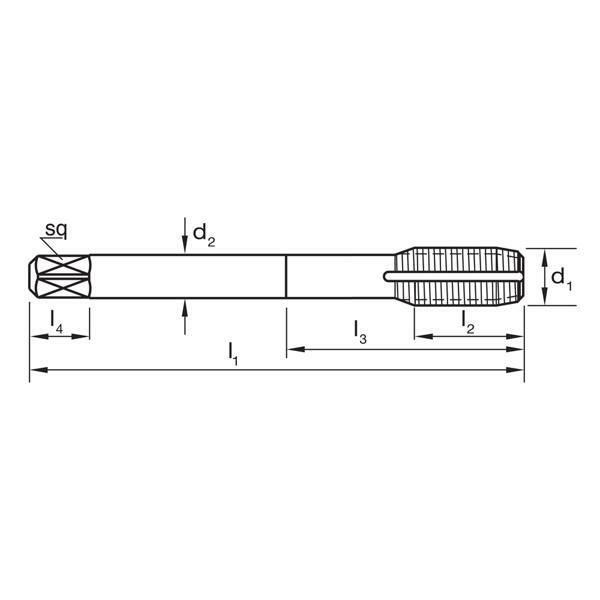

Shank (mm) 11

L1 (mm) 100

Diameter G1/4

L2 (mm) 22

Drill Size (mm) 12.5

L4 (mm) 12

Square Size (mm) 9

Group Code T361
System of Measurement DIN5156
Thread Form ISO G Parallel Series 55° (G-BSPF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form C / 3 x P
Application N (for normal general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Fluteless - Multi Coolant Groove
Nut Tolerance ISO 228 X
